Transmission Mode Switch: Testing and Inspection

HOLD SWITCH
Inspection / Operation
1. Turn the ignition switch ON.




2. Press the Hold switch ON/OFF and verify that the Hold Indicator illuminates when the hold mode is selected.

3. If not as specified, measure the Hold Switch terminal voltage.

Terminal Voltage
1. Remove the front and rear consoles.
2. Turn the ignition switch ON.

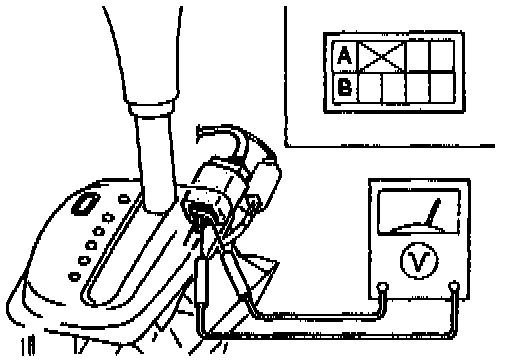

3. Measure the voltage between terminals A or B of the Hold Switch and ground.
4. If not correct, check the Hold Switch continuity.

Continuity
1. Disconnect the negative battery cable and the shift-lock actuator connector.

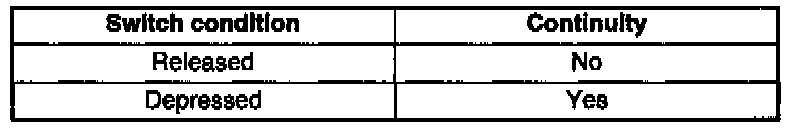

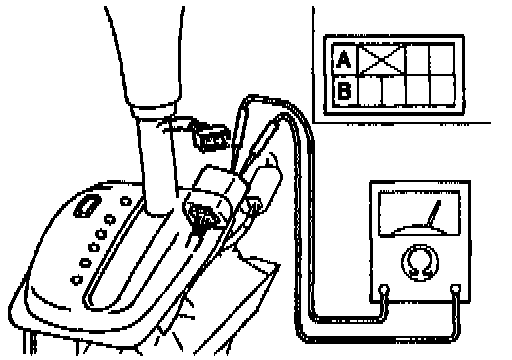

2. Check continuity between terminals A and B of the Hold Switch.
3. If not correct, replace the selector lever knob.
4. Install the front and rear consoles.
5. Connect the negative battery cable.
