Heater Case Removal

HEATER CASE ASSEMBLY (WITHOUT A/C)




Removal/ Installation

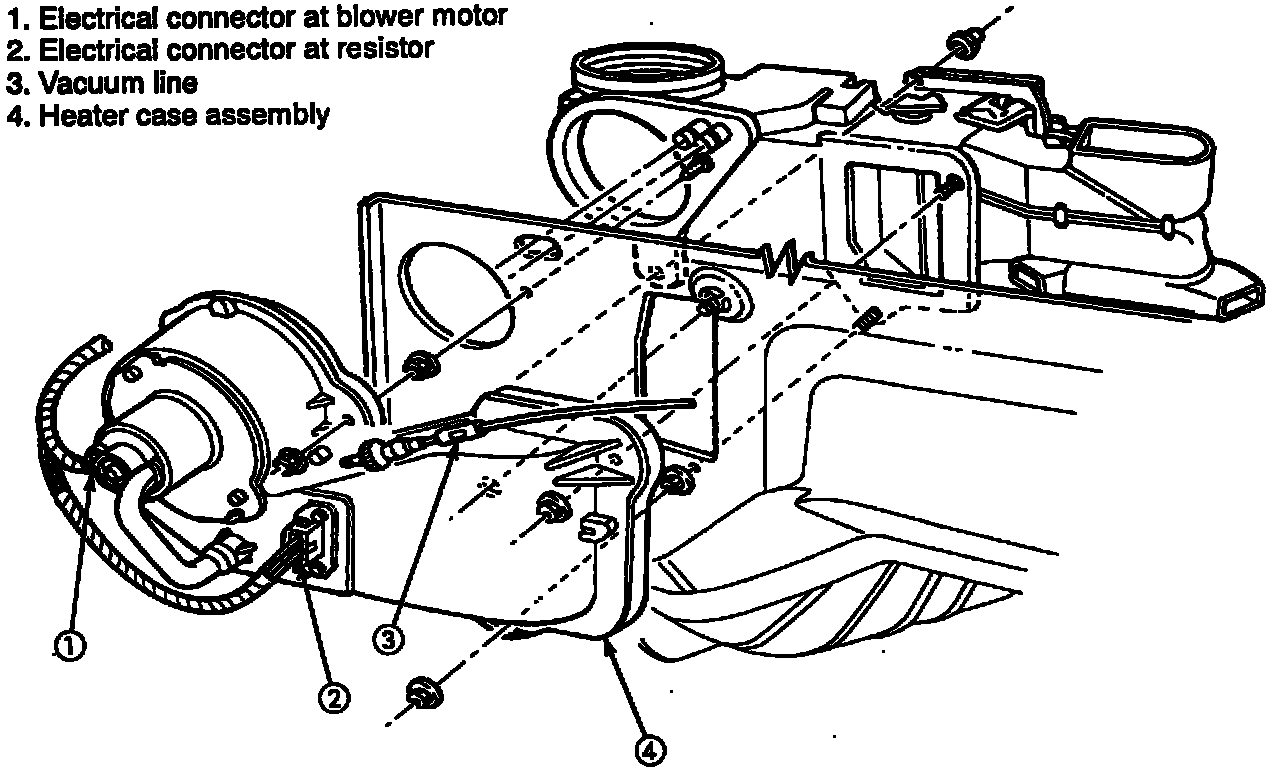

1. Remove the heater case as shown in figure.
2. Repair or replace as necessary.
3. Install in the reverse order of removal.
