Heater Plenum Assembly Removal (Without A/C)
HEATER PLENUM ASSEMBLY (WITHOUT A/C) Removal/Installation 1.
Remove
heater hoses from
heater core tubes and plug hoses.
2.
Remove the heater blower motor.
3.
Remove the Instrument panel.
4.

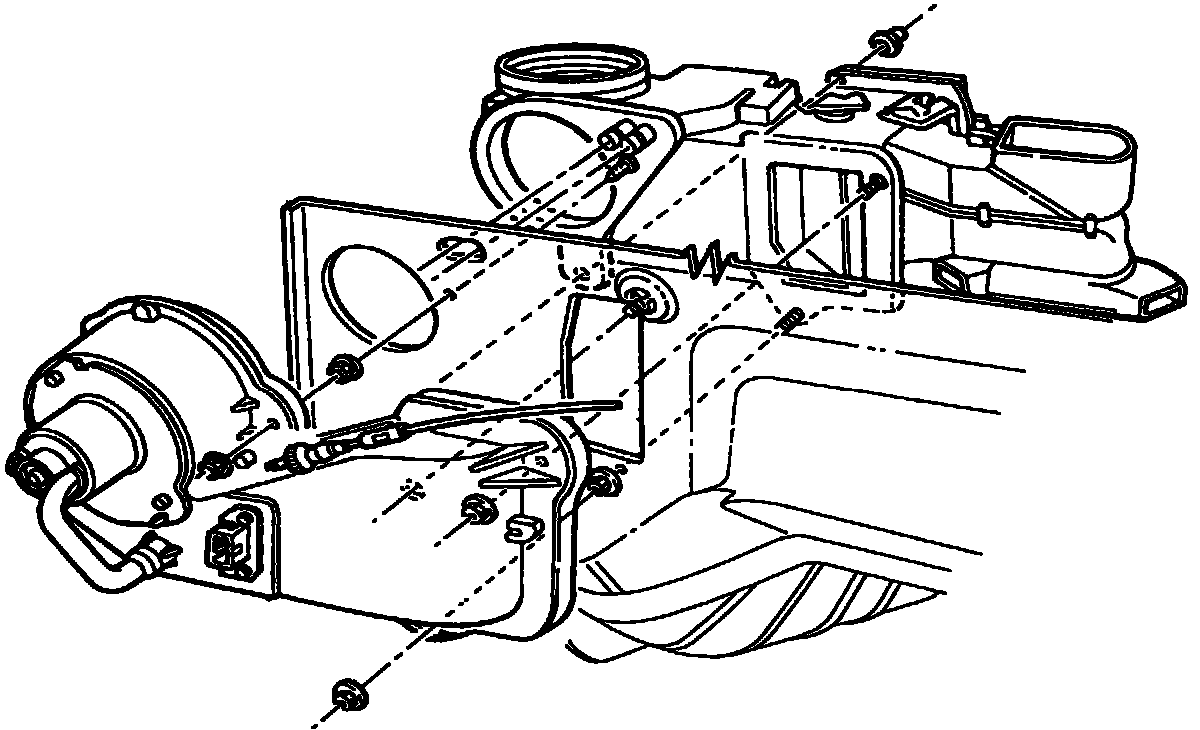

Remove the heater plenum assembly as shown in the figure.
5.
Install in the reverse order of removal.
