Automatic Transaxle (ATX)

POWERTRAIN CONTROL MODULE (PCM) PIN TERMINAL VOLTAGES

NOTE: All values shown may vary ± 20% depending on operating conditions and other factors. RPM values may vary with axle ratios and tire size.

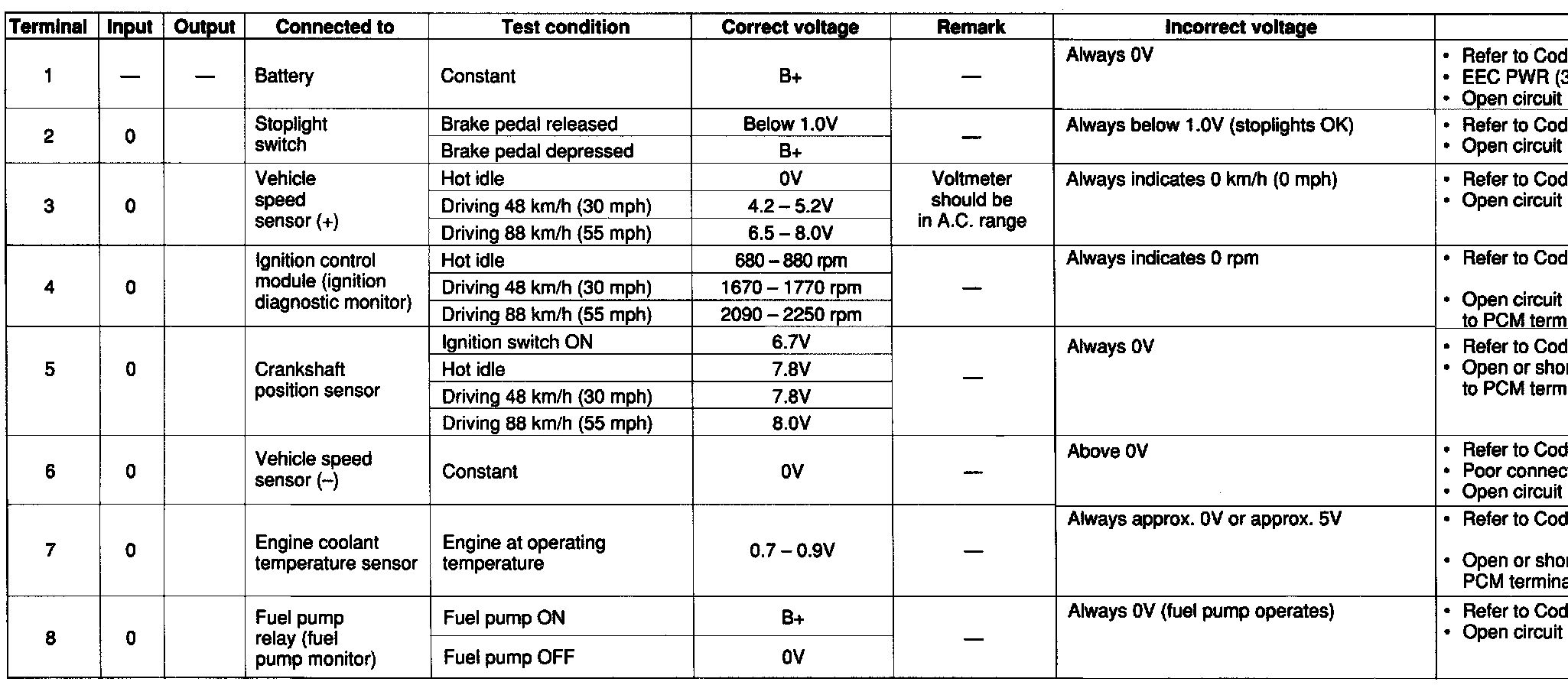

�H�<Pins 1 Through 8 (AT):

PCM PINS 1 THROUGH 8

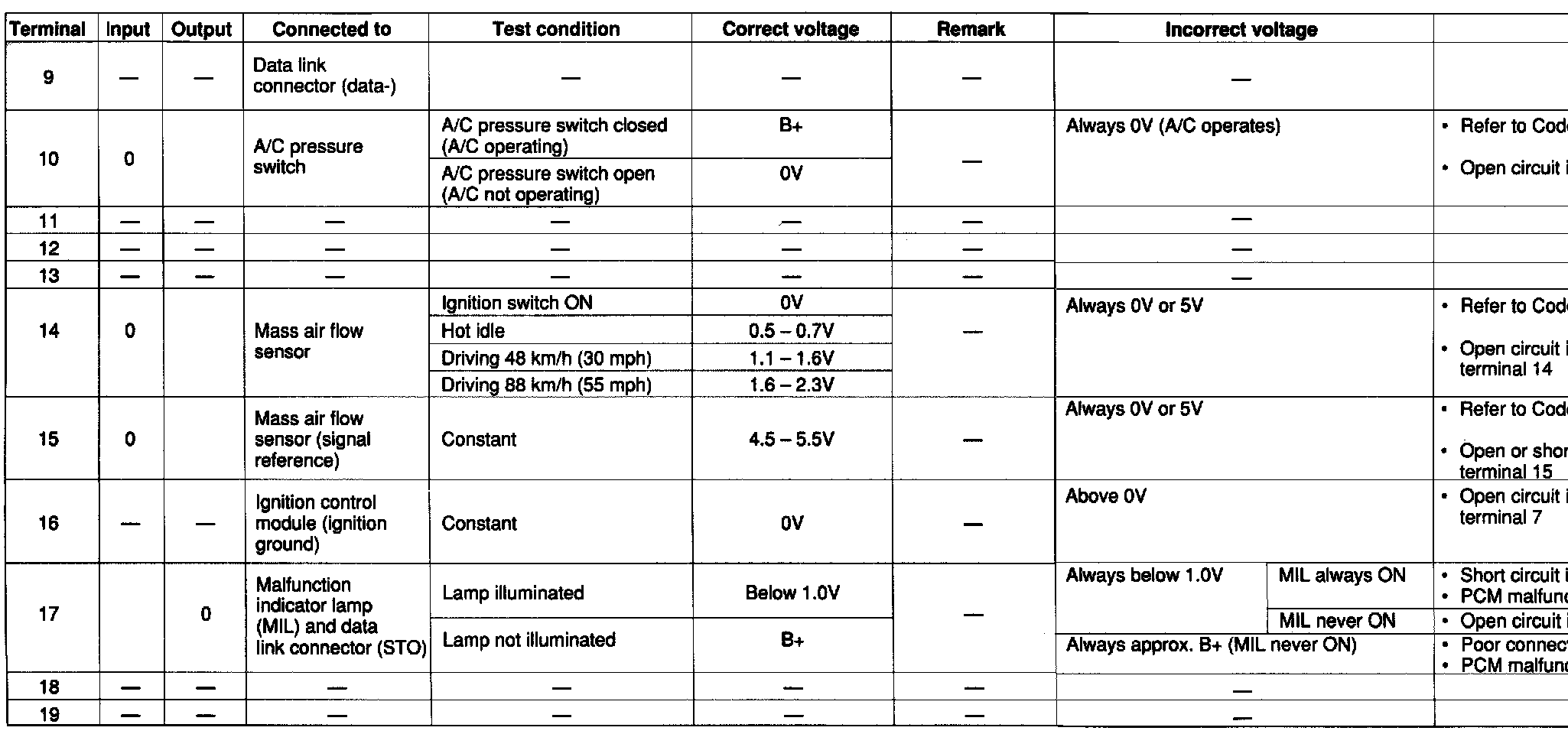

��<Pins 9 Through 19 (AT):

PCM PINS 9 THROUGH 19

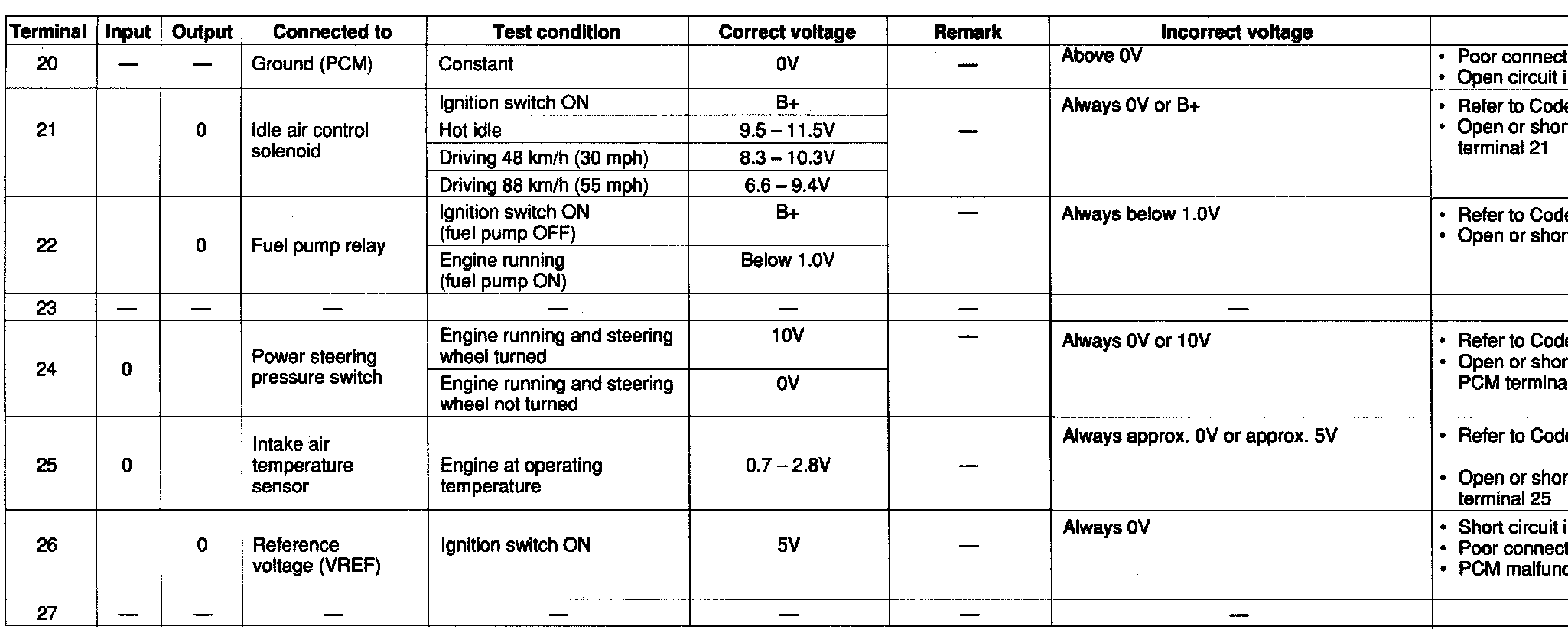

��<Pins 20 Through 27 (AT):

PCM PINS 20 THROUGH 27

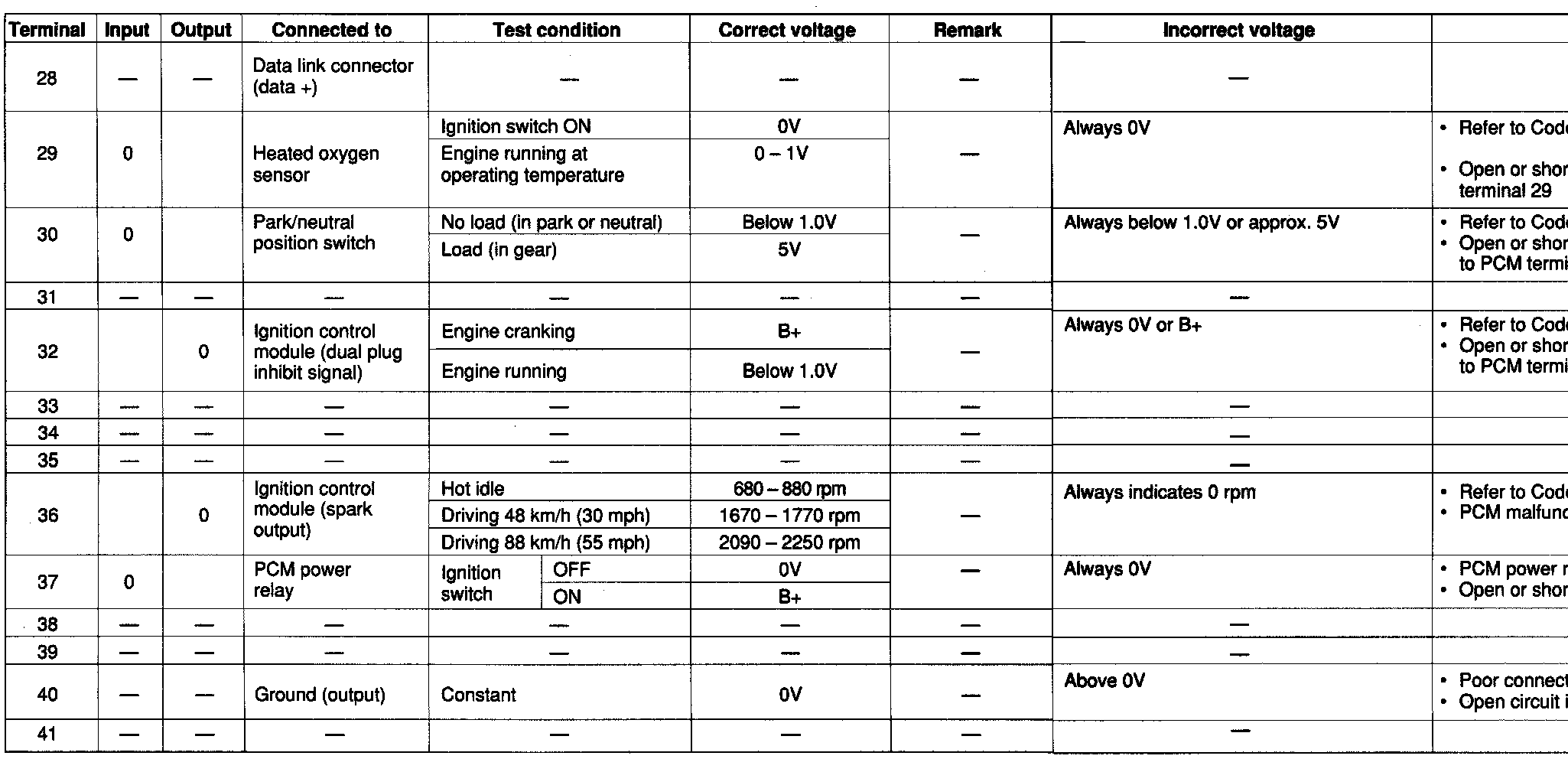

%S�<Pins 28 Through 41 (AT):

PCM PINS 28 THROUGH 41

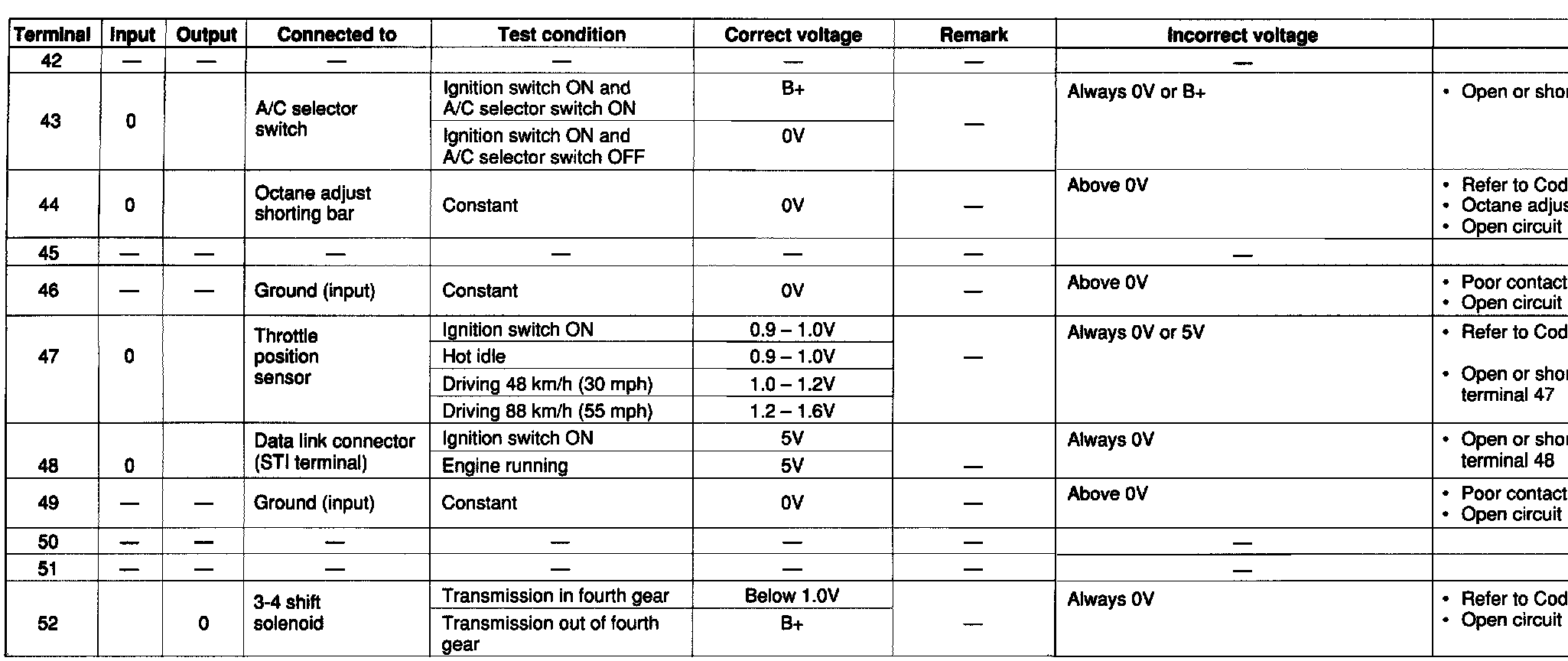

f��<Pins 42 Through 52 (AT):

PCM PINS 42 THROUGH 52

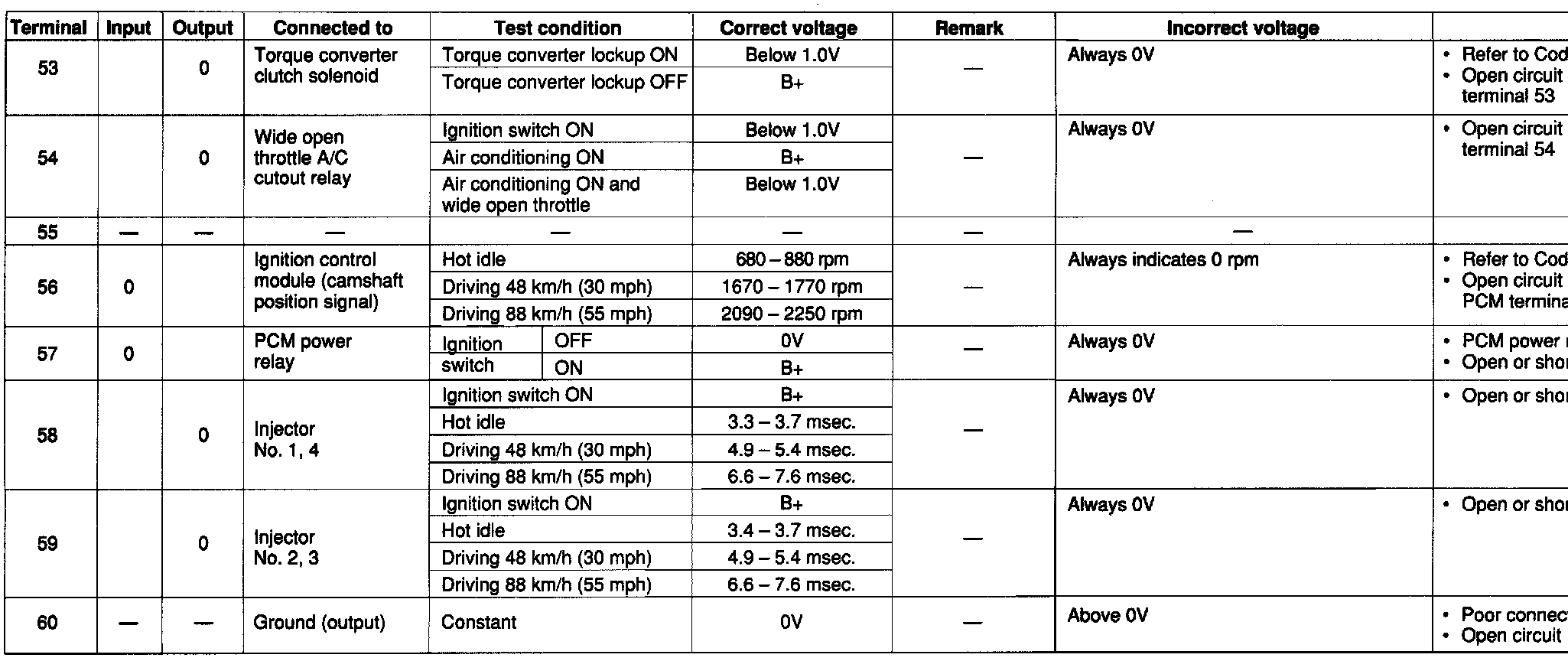

��<Pins 53 Through 60 (AT):

PCM PINS 53 THROUGH 60
