Manual Transaxle (MTX)

POWERTRAIN CONTROL MODULE (PCM) PIN TERMINAL VOLTAGES

NOTE: All values shown may vary ± 20% depending on operating conditions and other factors. RPM values may vary with axle ratios and tire size.

�a�<Pins 1 Through 9 (MT):

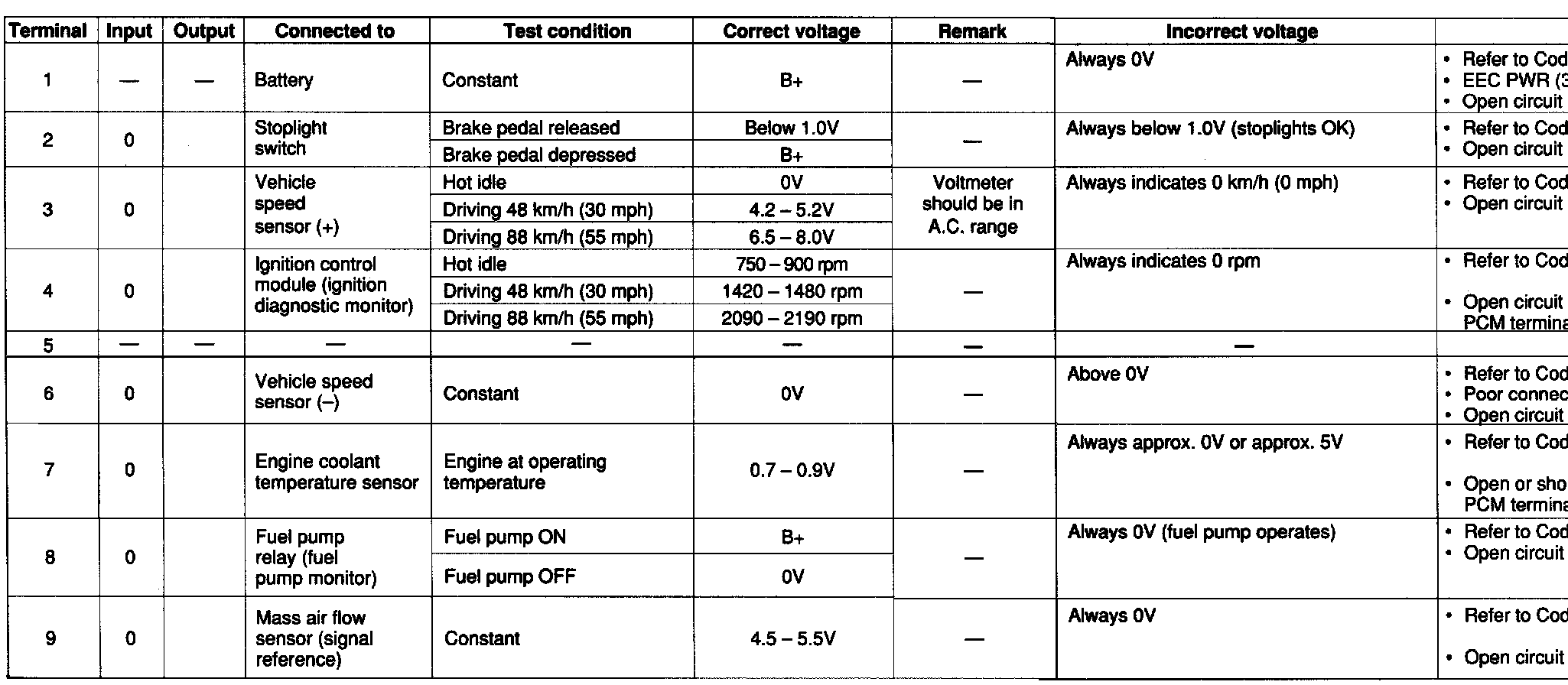

PCM PINS 1 THROUGH 9

��<Pins 10 Through 21 (MT):

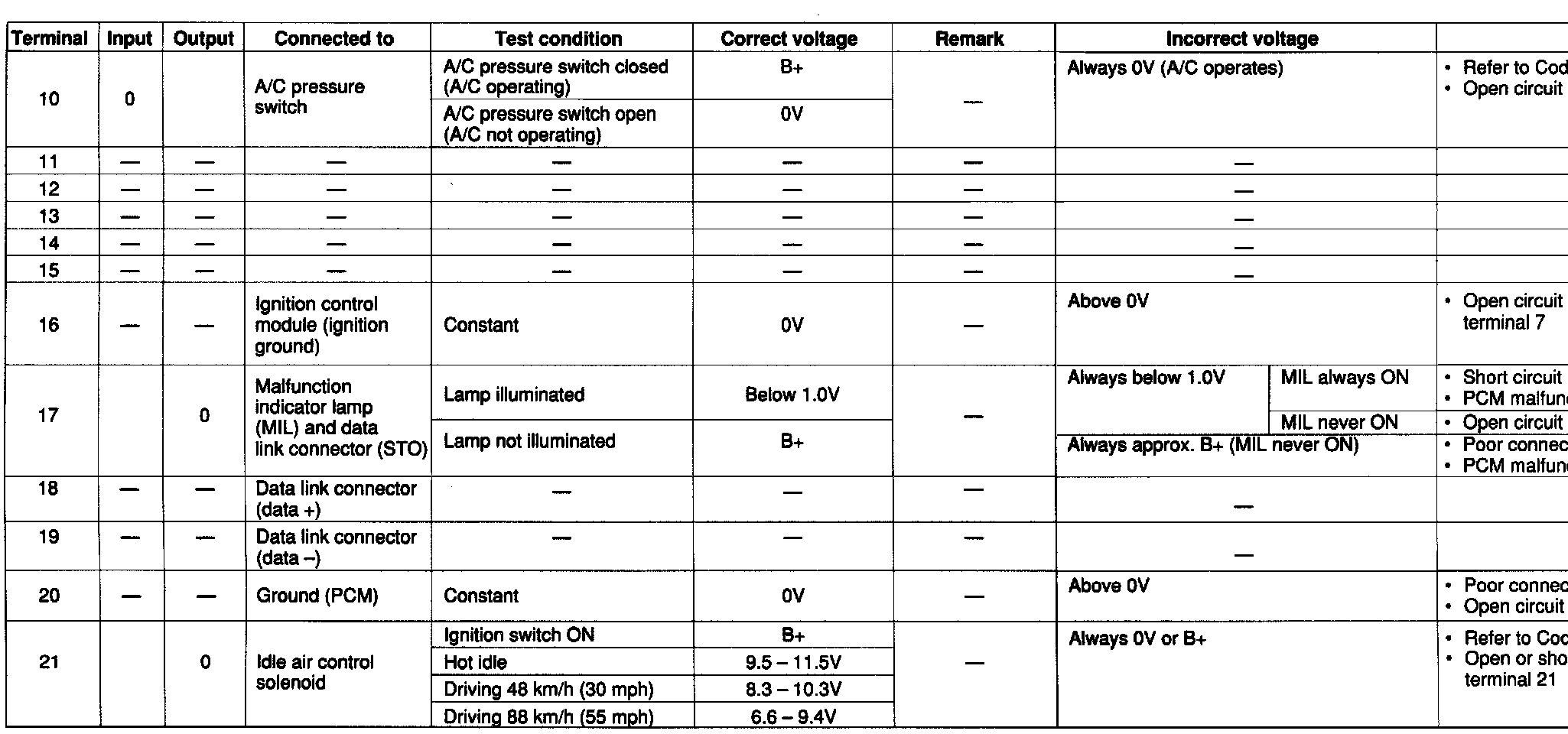

PCM PINS 10 THROUGH 21

`�<Pins 22 Through 29 (MT):

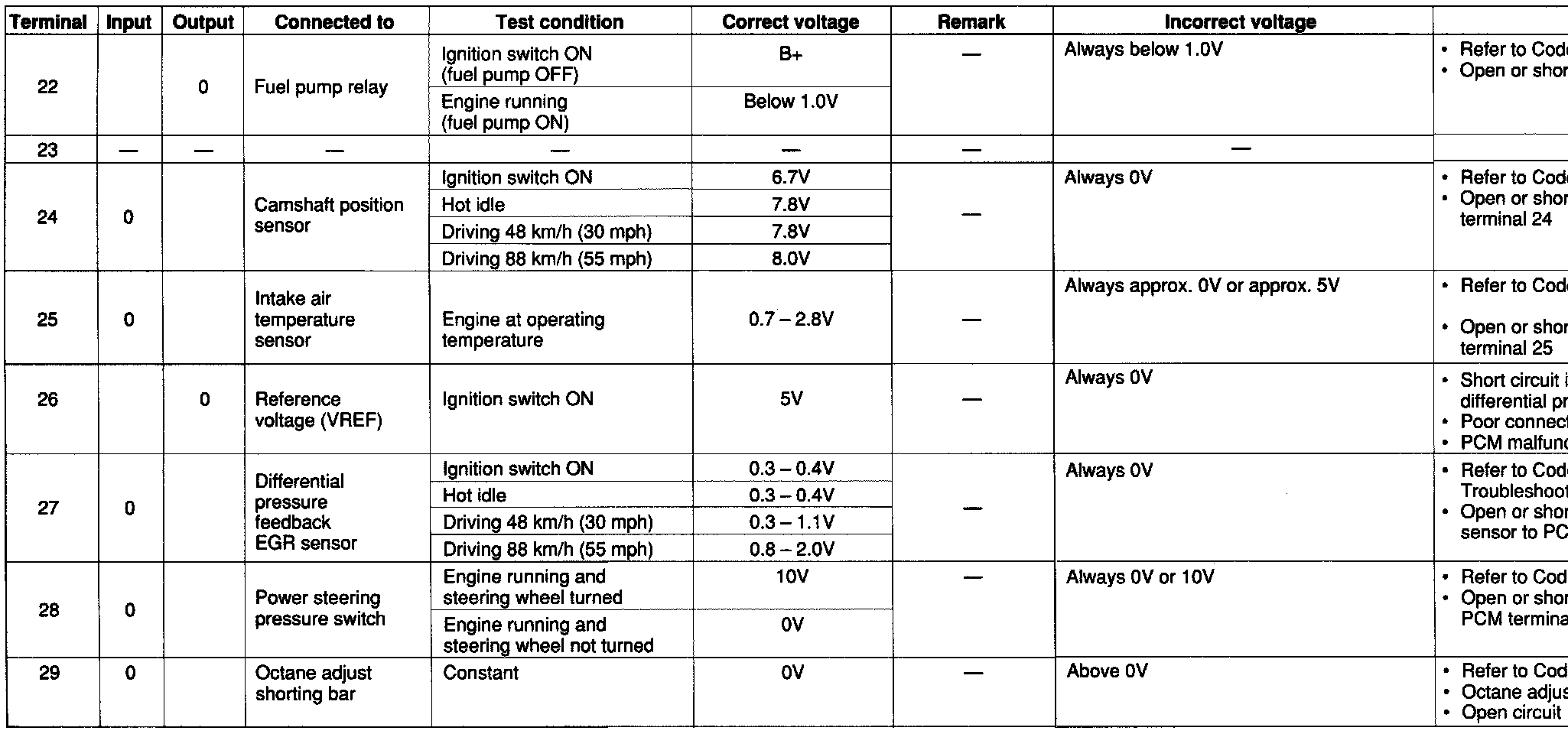

PCM PINS 22 THROUGH 29

��<Pins 30 Through 39 (MT):

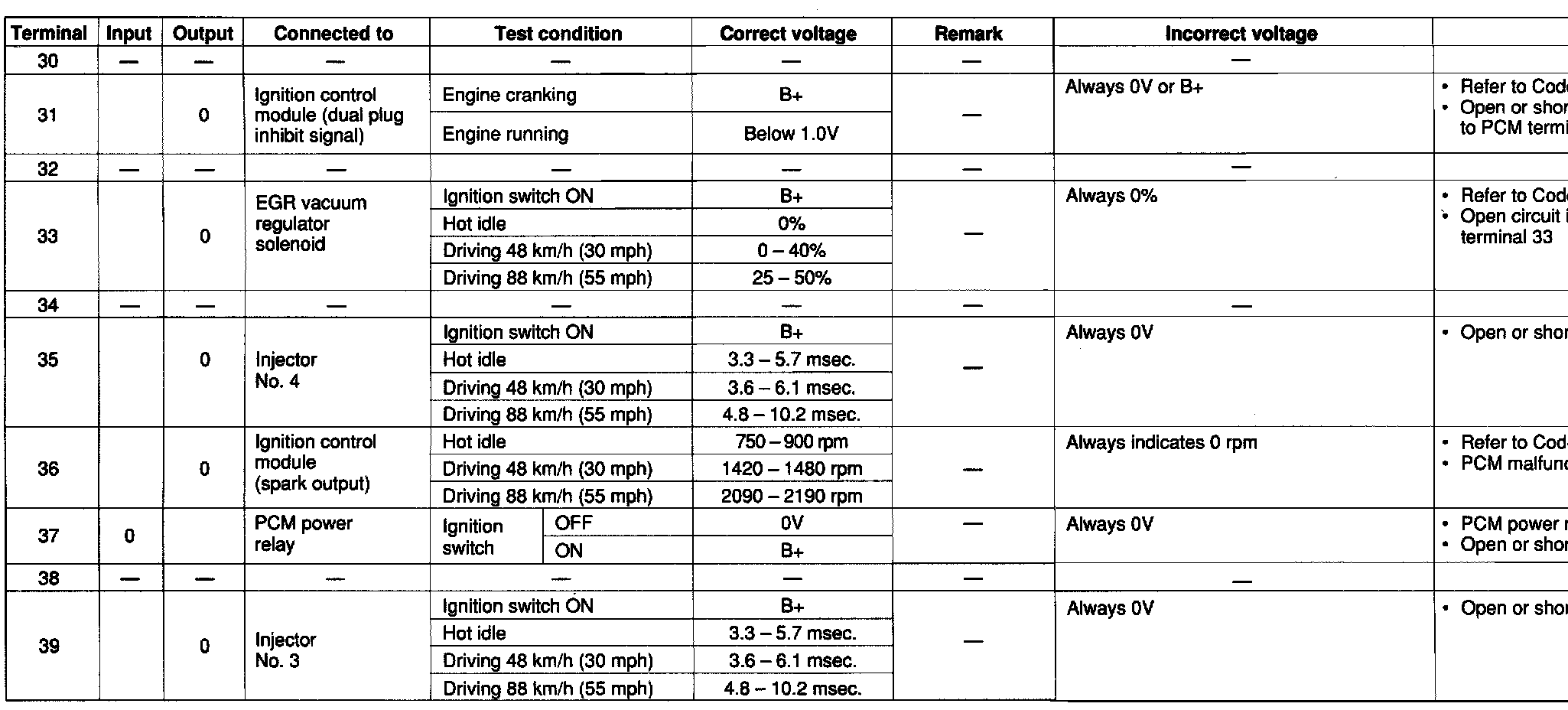

PCM PINS 30 THROUGH 39

��<Pins 40 Through 50 (MT):

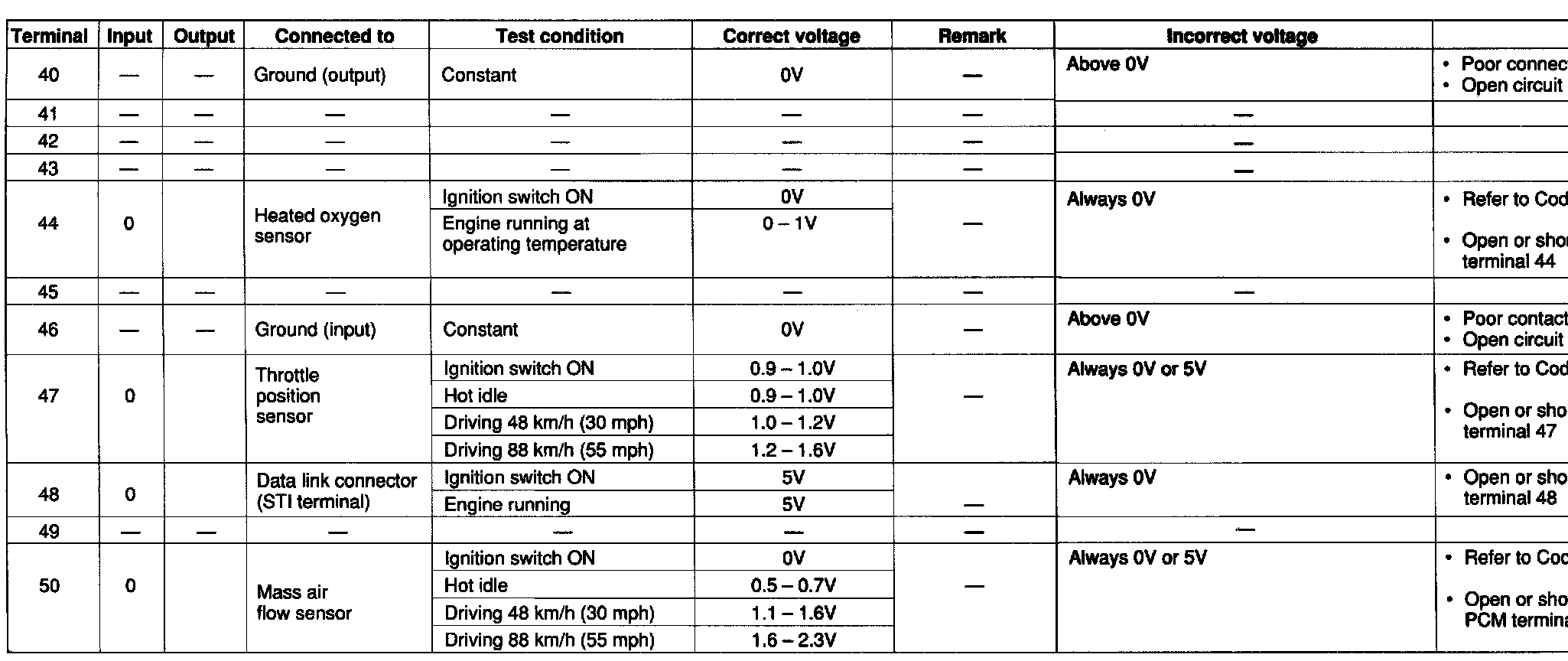

PCM PINS 40 THROUGH 50

T!�<Pins 51 Through 60 (MT):

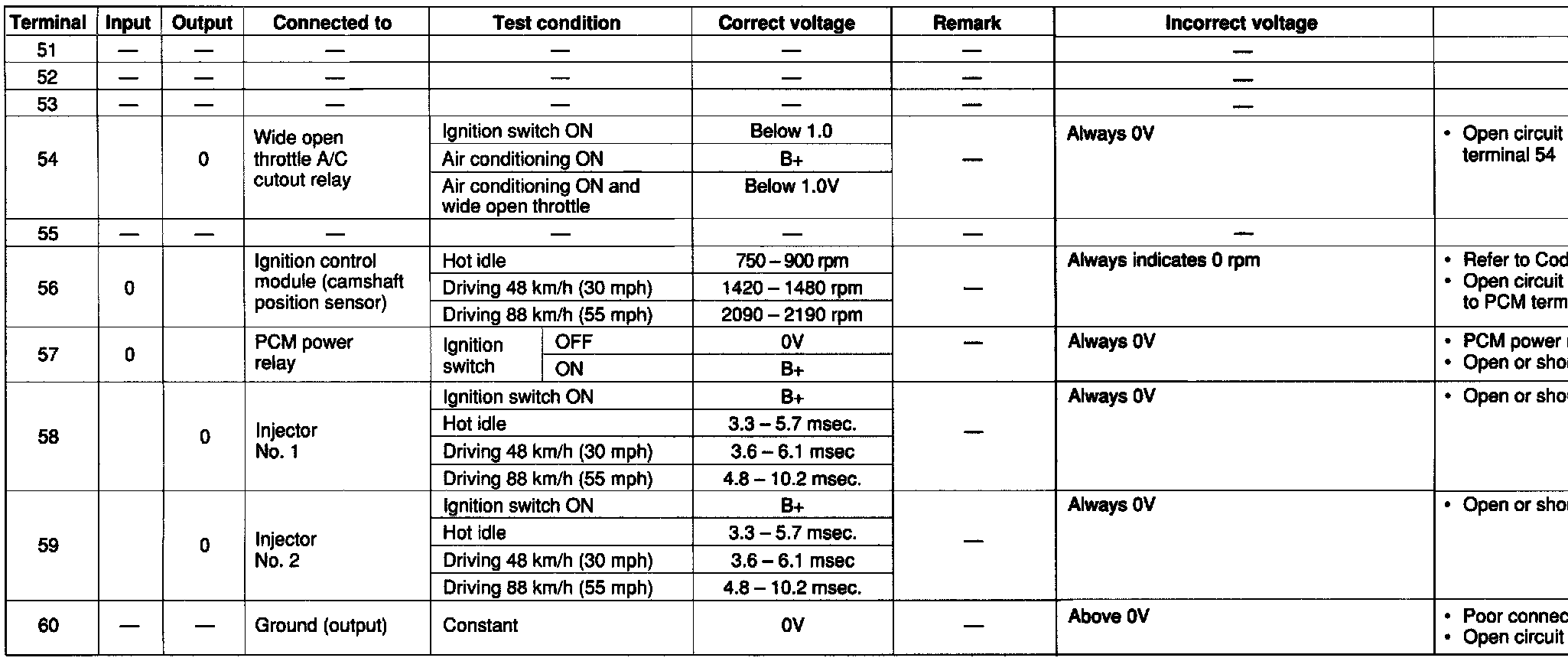

PCM PINS 51 THROUGH 60
