Manual Transmission

Service Tips:

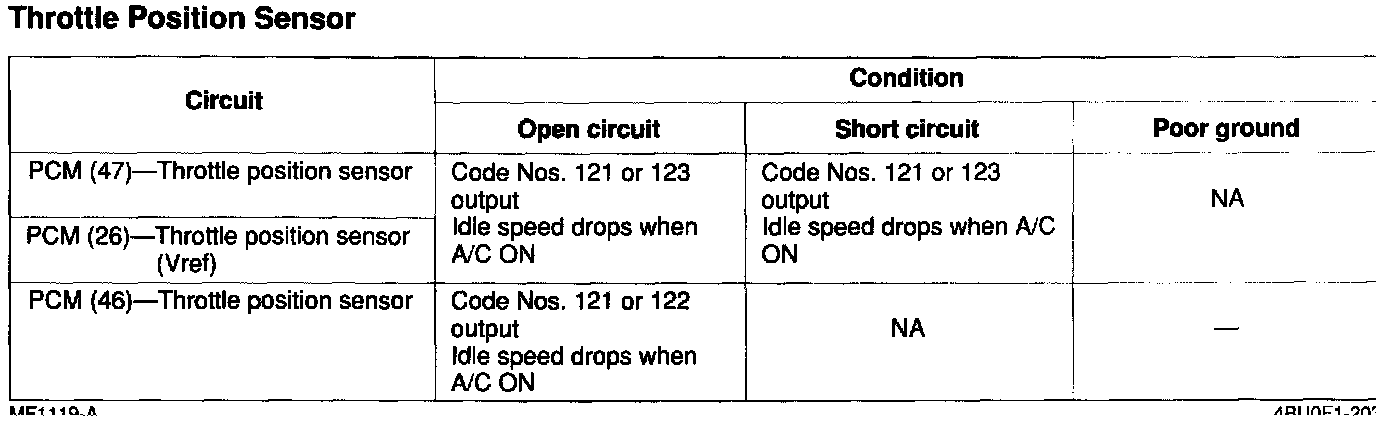

THROTTLE POSITION SENSOR
- If the throttle position sensor or circuit has an open or short, Diagnostic Trouble Code No. 121,122,123 or 167 is output.
- If the throttle position sensor circuit fails, rough idle, poor acceleration or shift shock (AT) may occur.
