Disassembly

1. Apply identification punch marks on the carrier, differential bearing caps for reassembly purpose, Fig. 1.
2. Loosen the bearing cap attaching bolts, then pry differential gear assembly, bearing cups and shims out until they are loose in the bearing caps.
3. Remove the differential assembly together with the bearing outer races. Make certain that each bearing outer race remains with its respective bearing.
4. Remove the drive pinion nut, then the pinion.
5. Disassemble and inspect all parts, Fig. 3. If damaged, replace as necessary.

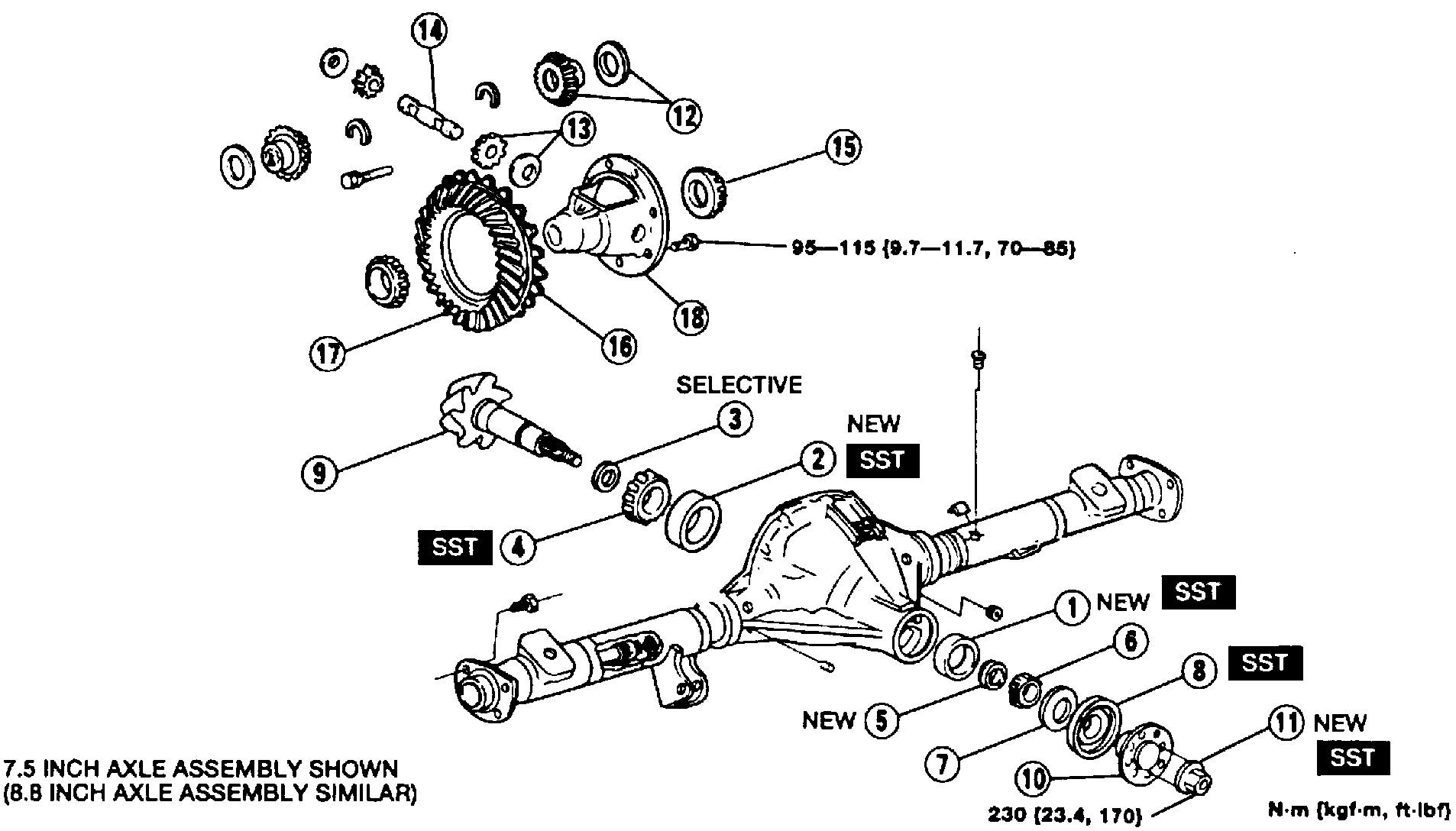

Fig. 3 Exploded View Of Differential:
