Clutch Switch: Service and Repair

Clutch Pedal Position Switch (Removal/Installation):





REMOVAL

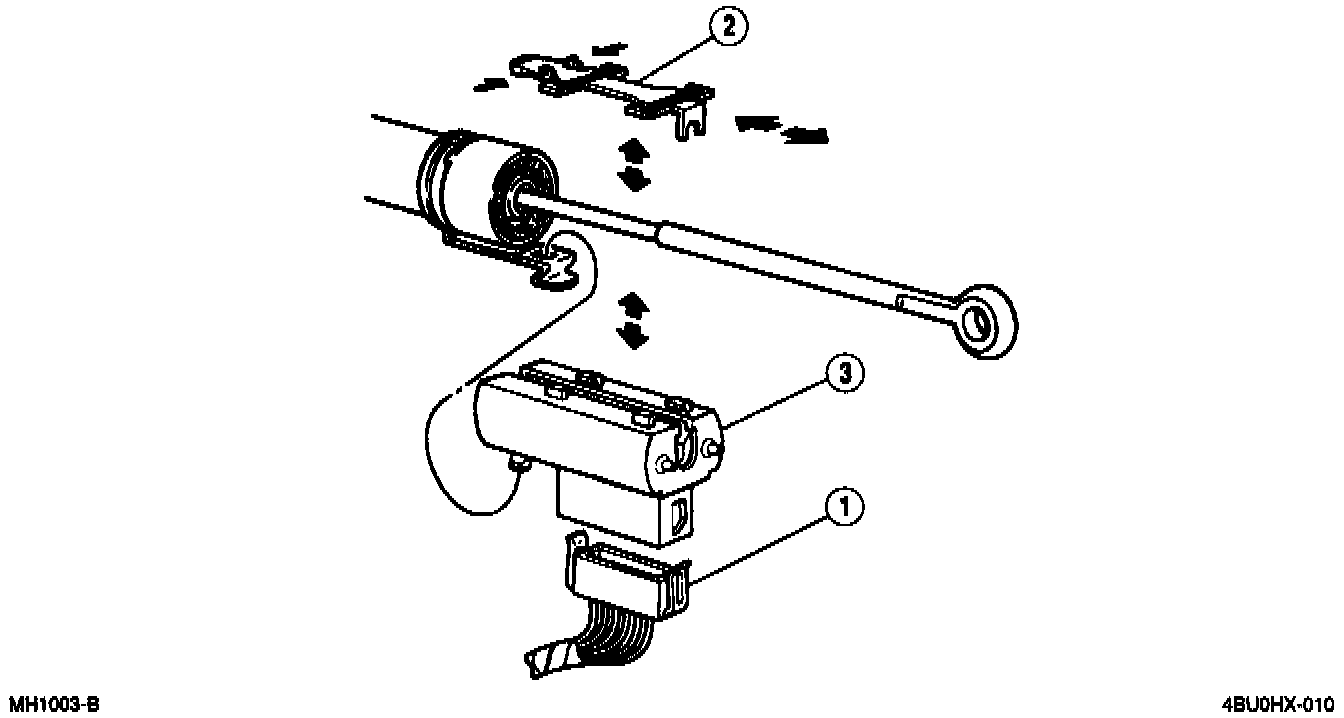

Remove components in the order listed. Use the figure for an additional reference.

1. Harness connector

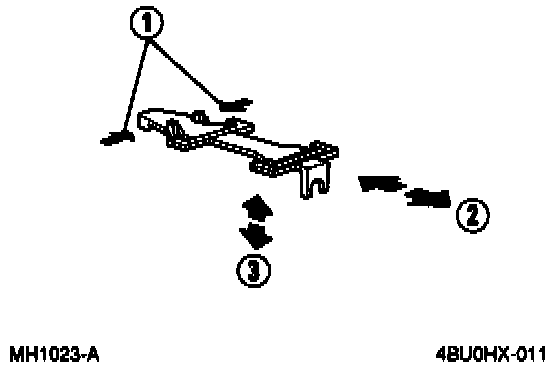

Remove Plastic Retainer As Shown:





2. Plastic retainer

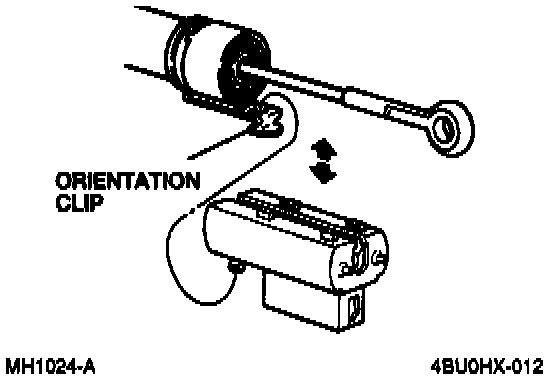

View: Clutch Pedal Position Switch:





3. Clutch pedal position switch.
NOTE:
1. Pull the orientation clip away from the switch to separate from the pin on the switch.
2. Rotate the switch to expose the location of the plastic retainer.
3. Remove the switch from the push rod.

INSTALLATION
Install in the reverse order of removal.
