Idle Speed Control System

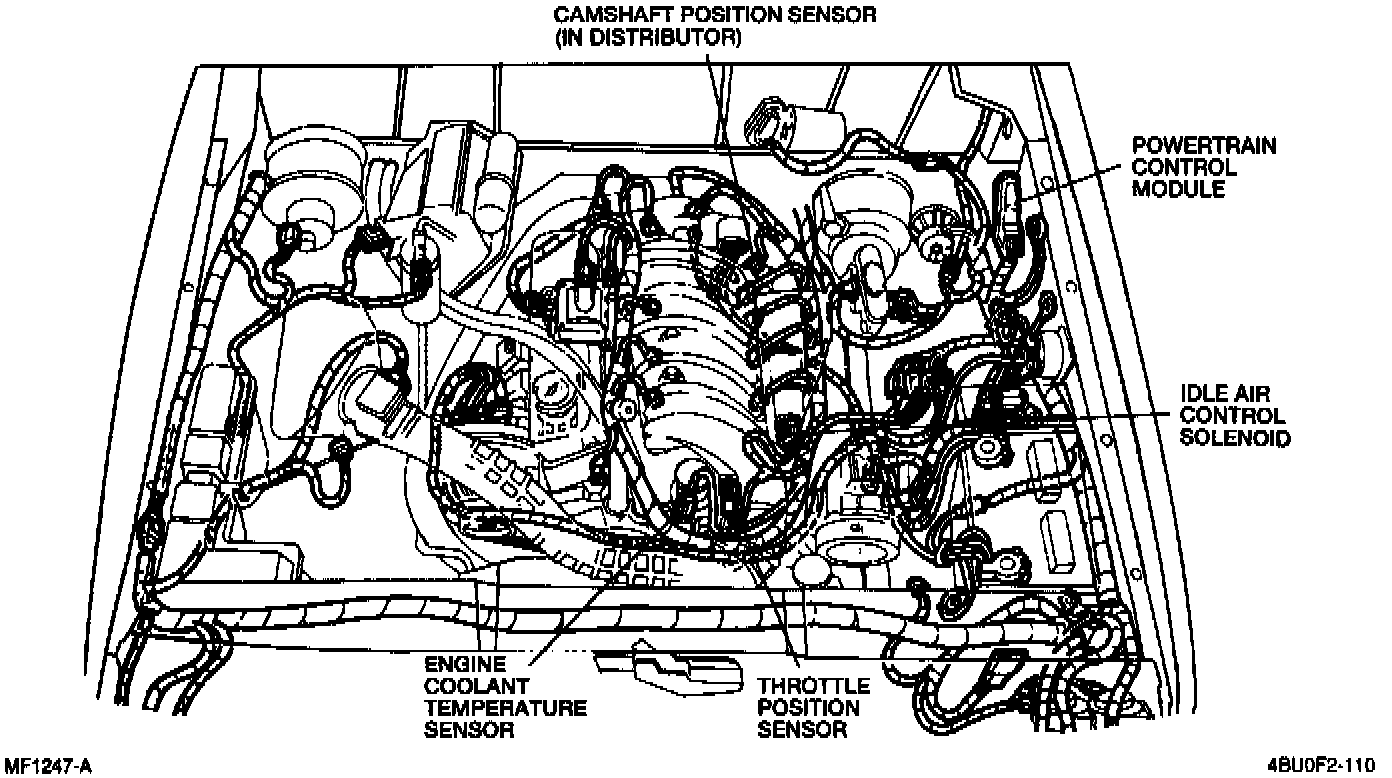

Idle Speed Control System Related Components:
PURPOSE The idle-speed control system controls the amount of "bypass air" that passes through a passage in the
throttle body to improve idle stability and warm-up driveability.
CONSTRUCTION This system consists of the Idle Air Control Solenoid, Powertrain Control Module
(PCM) and input devices.
