Service Tips
Service Tips:

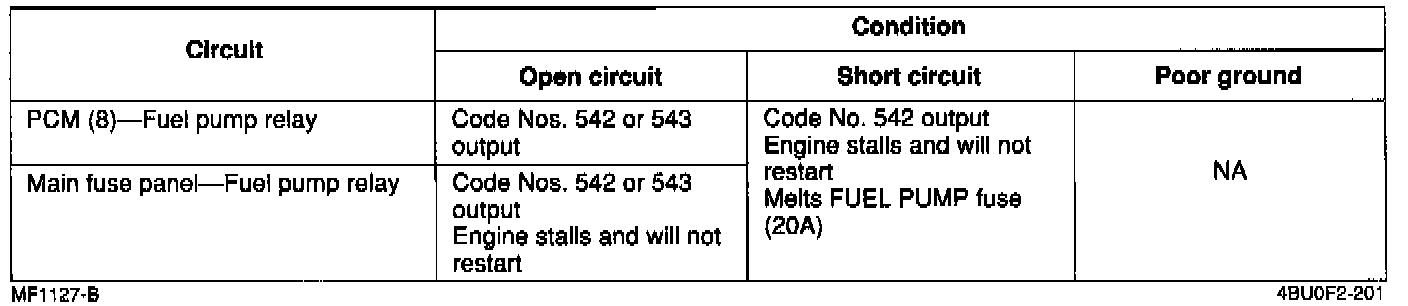

Fuel Pump Monitor Signal -
If the fuel pump monitor signal circuit has an open or short, Diagnostic Trouble Code No. 542 or 543 is output.
-
If the circuit is shorted, the
fuel pump will not operate and the engine will stall and not restart.
