Heater Core Case: Description and Operation

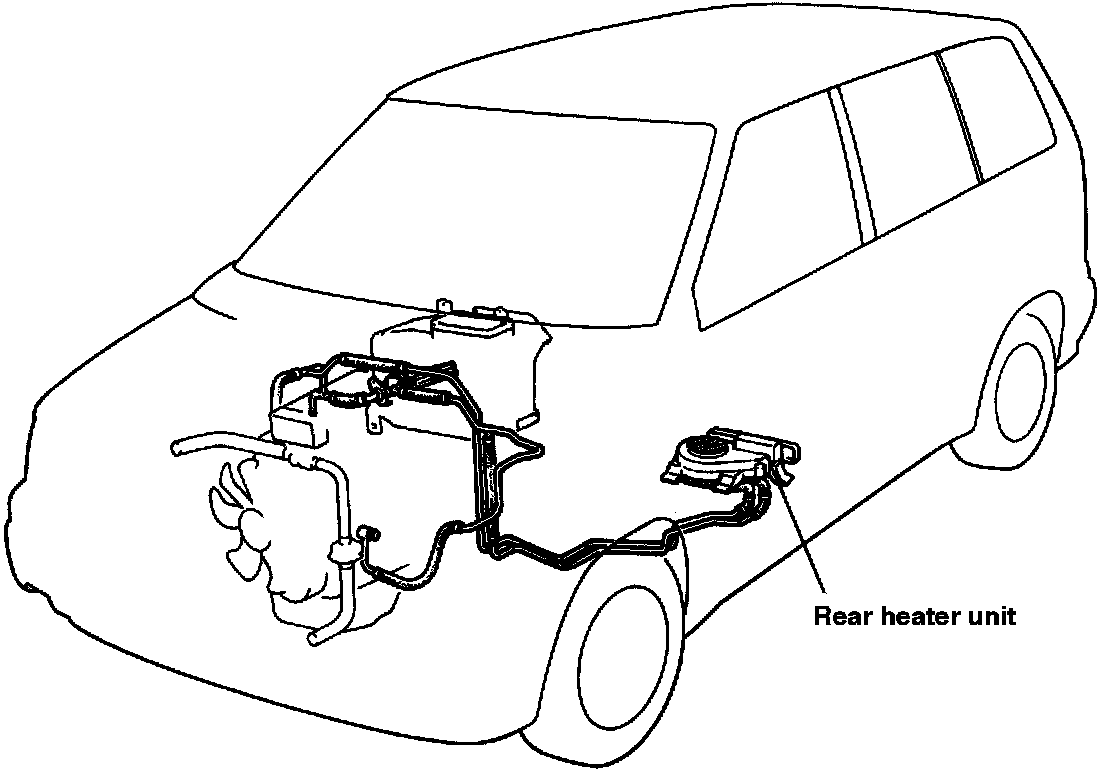

REAR HEATER DESCRIPTION The rear heater system uses the heat of the engine coolant. Engine coolant flows through pipes branched off the front heater piping.
The rear heater unit consists of the
heater core, rear heater blower motor, water valve, and case. The rear heater unit is mounted under the driver seat.
