Air Cleaner Housing: Service and Repair

Intake System R&R:

CAUTION
^ Driving without an air filter could cause excessive engine wear and engine compartment fire.
^ Contamination of mass air flow sensor will result from use of oil permeated air cleaner.

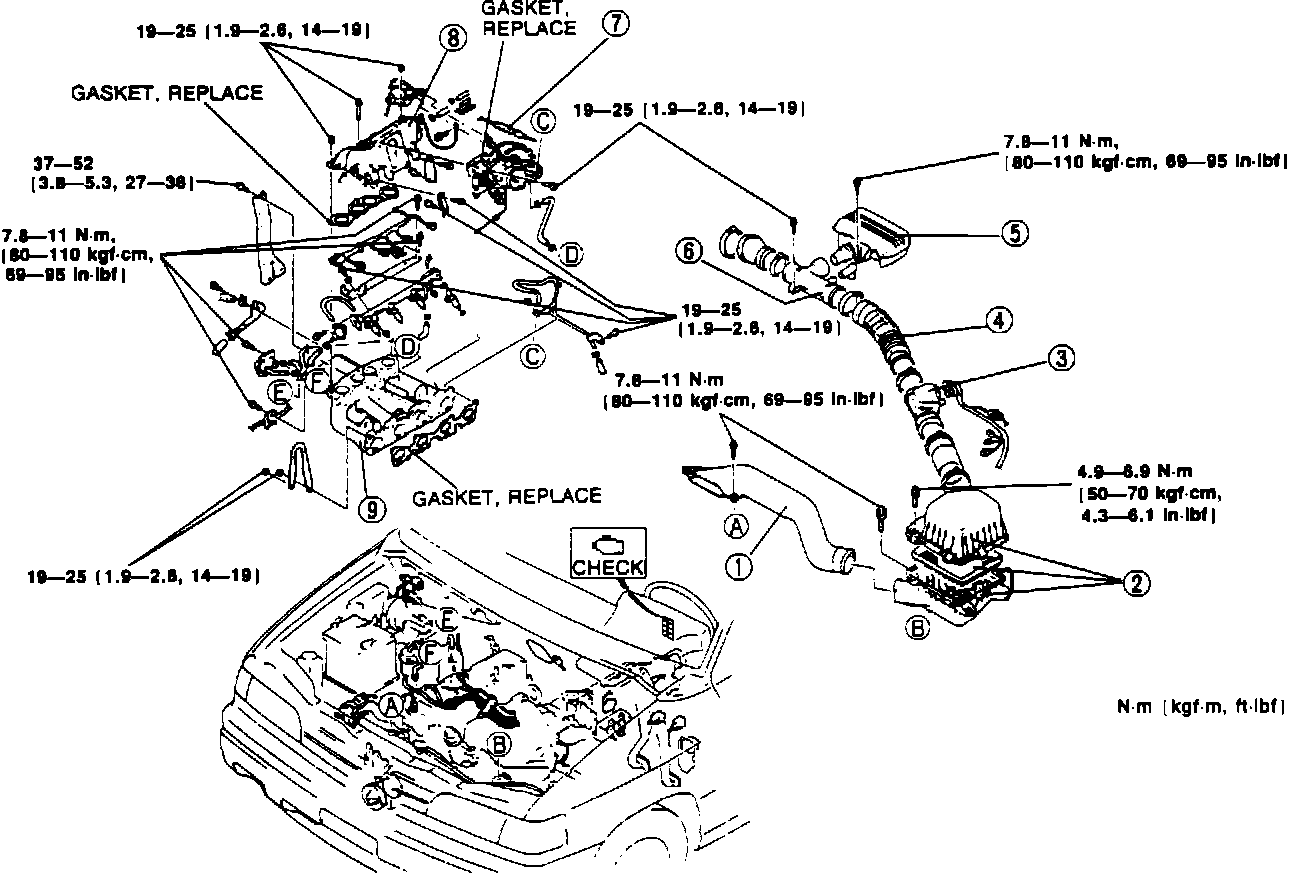

1. Remove components in order shown.
2. Inspect parts and replace as needed.
3. Install in reverse order of removal.

COMPONENTS

1. Air duct.
2. Air cleaner housing.
3. Mass air flow sensor.
4. Air hose.
5. Resonance chamber.
6. Air pipe.
7. Accelerator cable.
8. Dynamic chamber.
9. Intake manifold.
