Rear

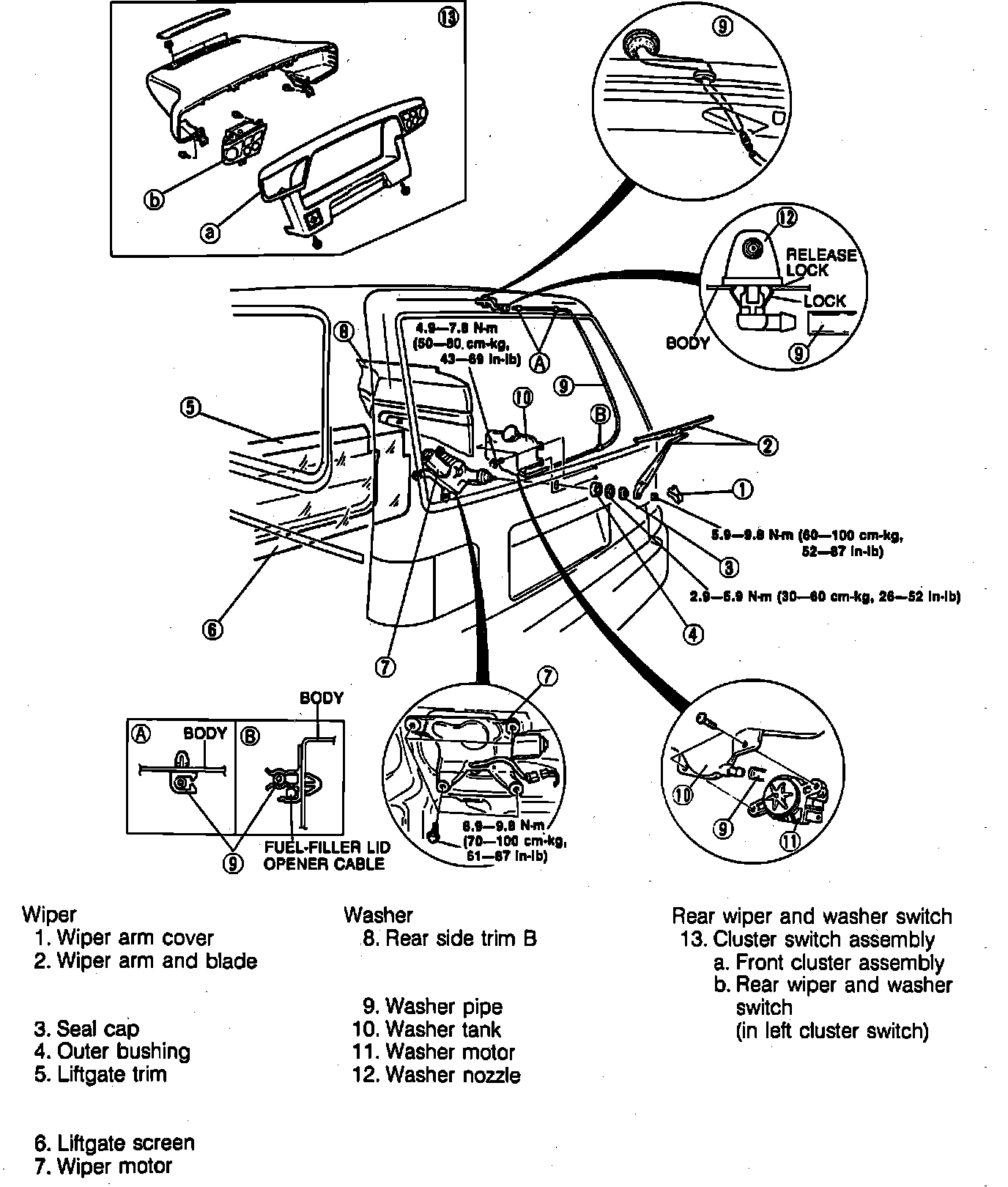

Fig. 5 Exploded View Of Rear Wiper Assembly:





1. Disconnect battery ground cable.
2. Remove wiper motor and components in order shown in Fig. 5.
3. Reverse procedure to install.
