Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection

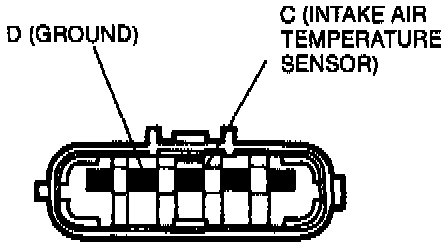

View: Intake Air Temperature Sensor Terminal In The Mass Air Flow Sensor Connector:
INSPECTION -
Verify that the
ignition switch is OFF.
-
Disconnect the mass airflow sensor connector.
-
Measure resistance of the
intake air temperature sensor as shown.
Specification: 2.21 - 2.69 K Ohms at 20°C (68°F) -
If not as specified, replace the mass airflow sensor.
