Electronic Spark Advance (ESA) Control System

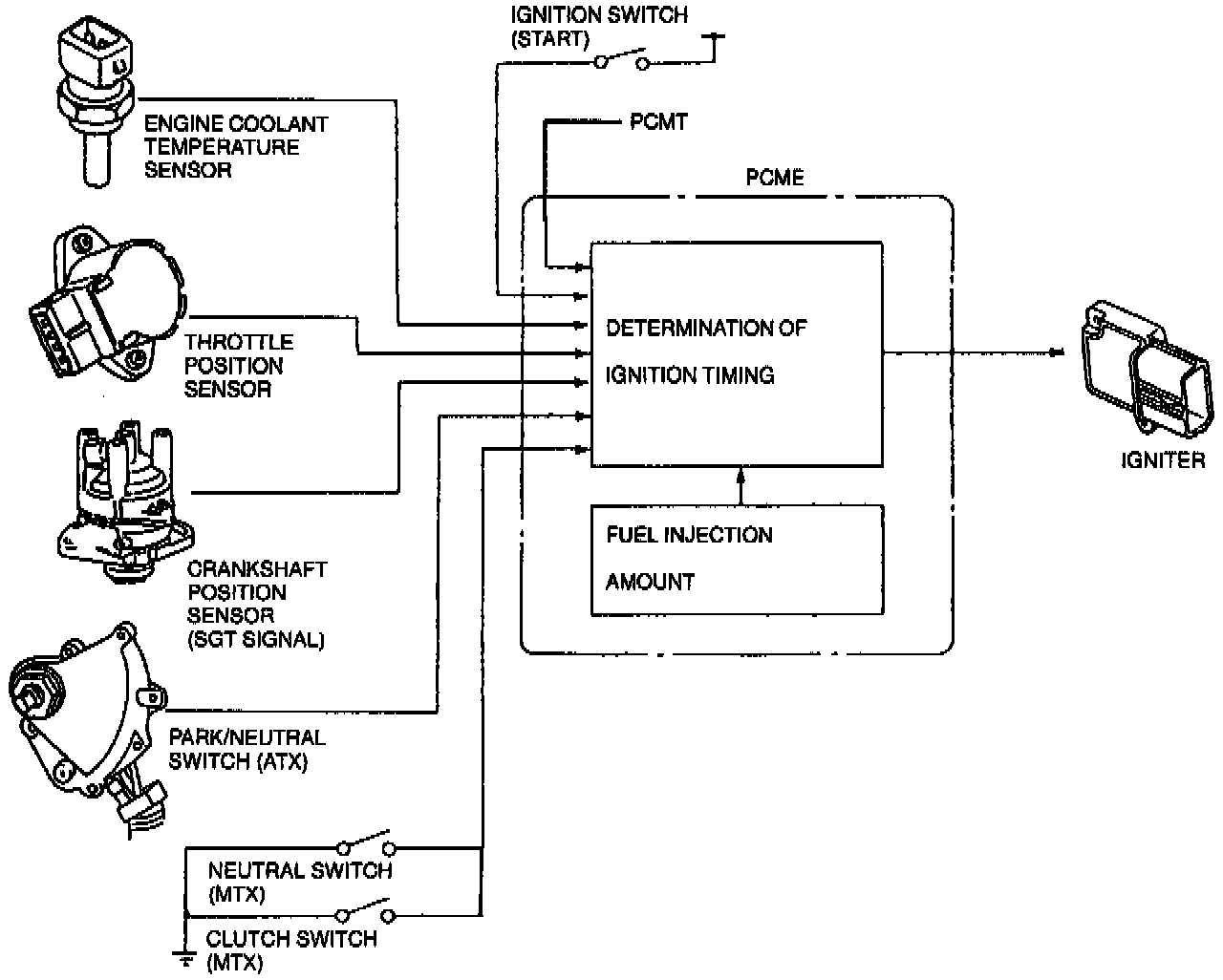

View: Electronic Spark Advance (ESA) Control System:
PURPOSE To provide optimum engine performance through the utilization of computer controlled ignition spark timing.

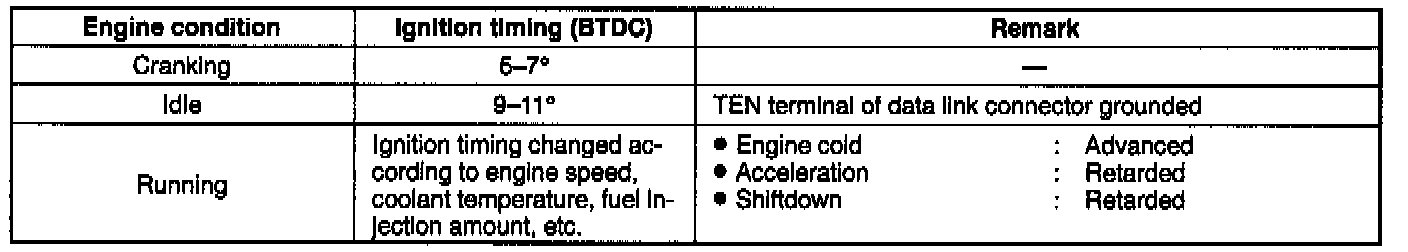

Electronic Spark Advance (ESA) Operating Conditions:
OPERATION The powertrain control module engine
(PCME) provides the most suitable
ignition timing according to data sent from various sensors and switches.
