Cooling Fan Control Inspection

SYSTEM INSPECTION

SST-49 B019 9A0:

1. Connect the special service tool (SST) to the data link connector.
2. Set switch (A) to position 1.
3. Set the test switch to SELF-TEST
4. Turn the ignition switch ON.

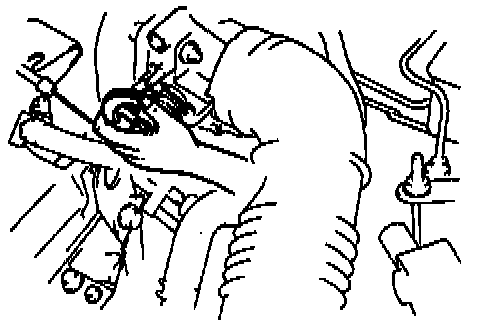

Open throttle By Hand:

5. Rotate the throttle link by hand and verify that coolant fan and condenser fan operates.
6. Disconnect the SST.
7. If not specified, inspect as following.
- Powertrain control module engine (PCME) 1N terminal voltage
- PCME 1K terminal voltage
- Coolant fan relay
- Condenser fan relay
