Component Locations

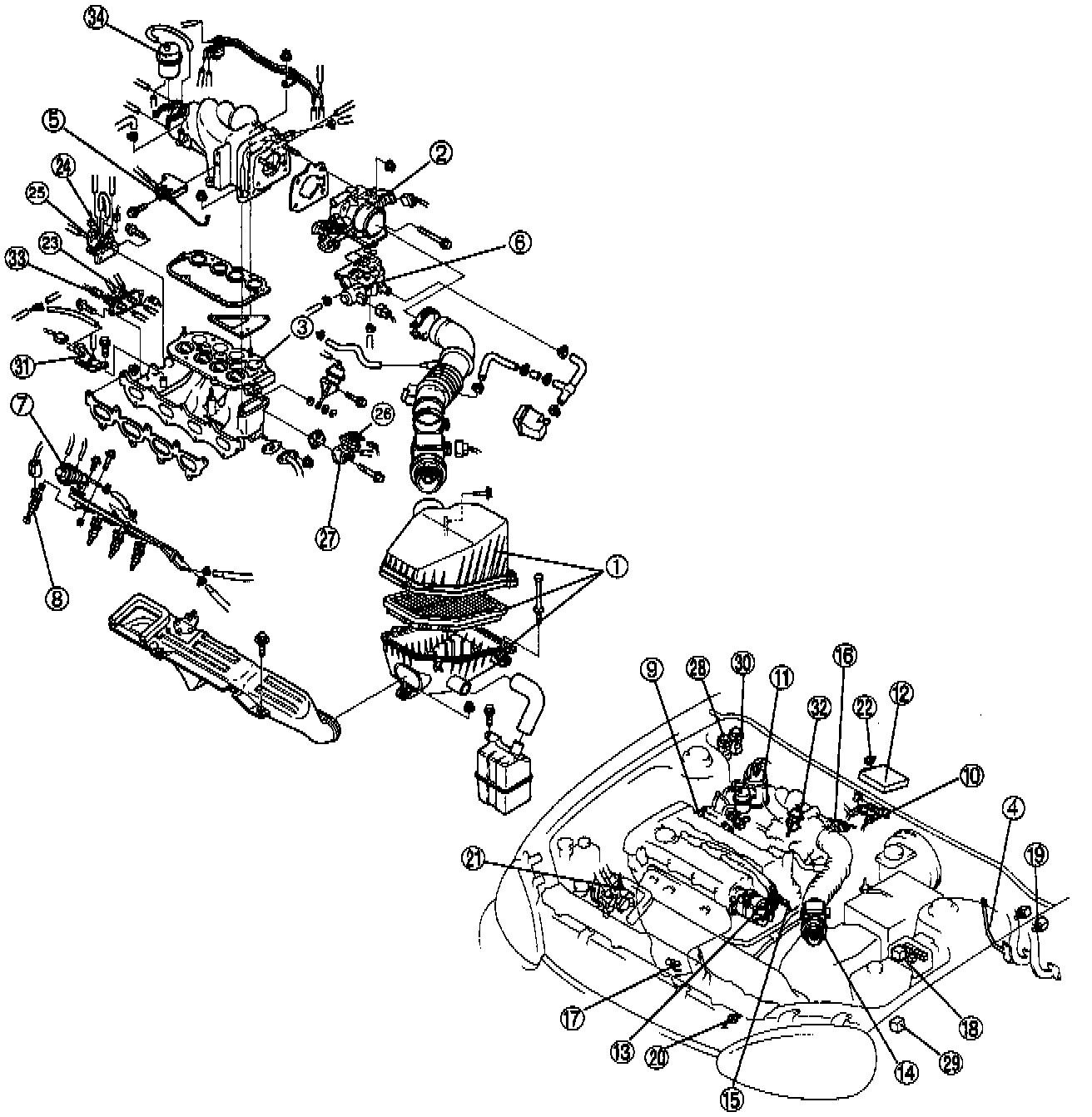

View: Underhood Components:
The two EGR solenoid valves (vent and vacuum) are located near the right side of the engine compartment, mounted on the intake manifold as a pair. Refer to items
No.24 &
No.25 in the image for further reference.
-
Item
No.24 EGR solenoid valve (vacuum)
-
Item
No.25 EGR solenoid valve (vent)
