Exploded Views

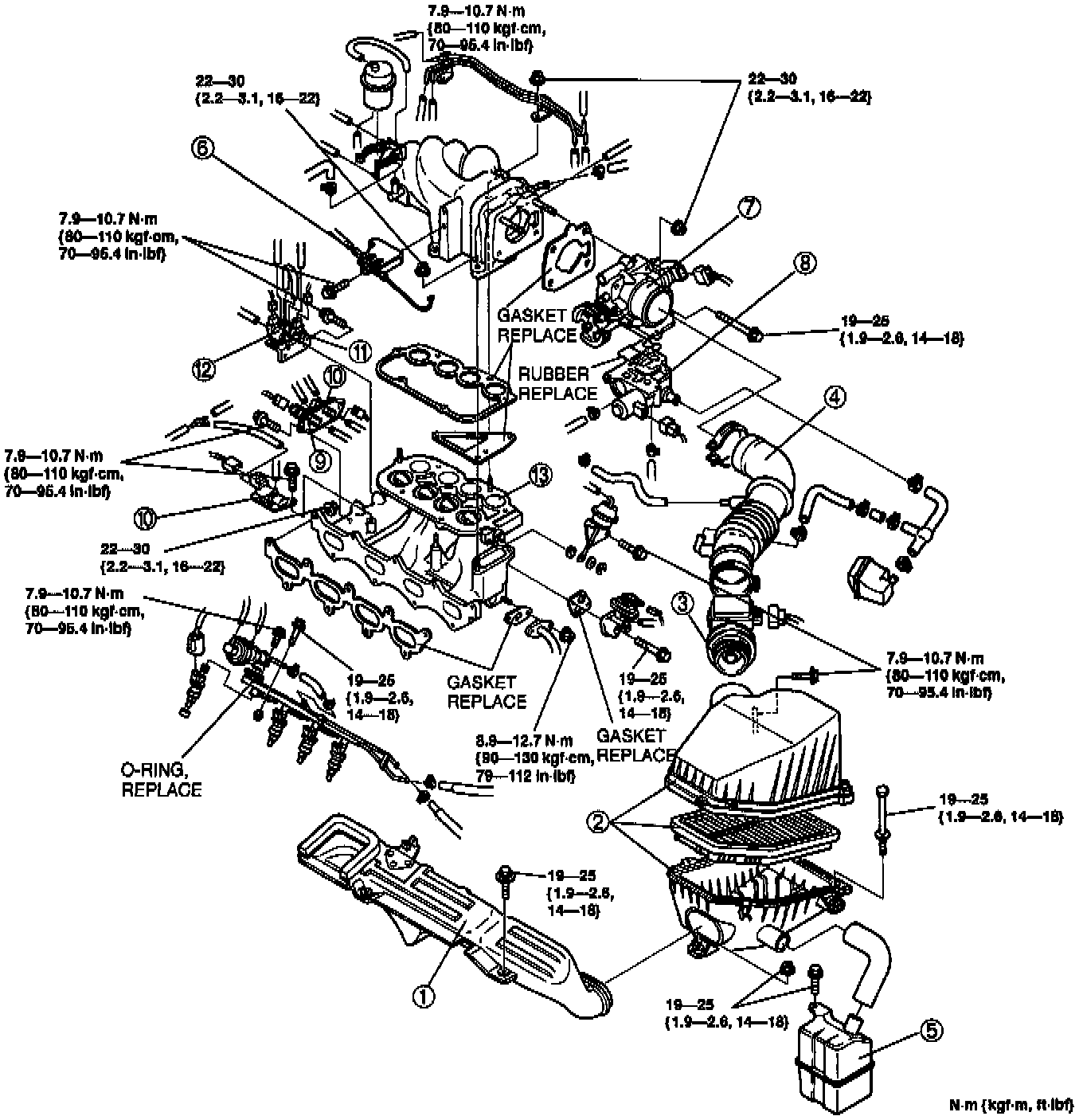

View: Intake Air System:
1.
Air duct
2.
Air cleaner assembly
3.
Mass airflow sensor
4.
Air hose
5.
Resonance chamber
6.
Accelerator pedal/cable
7.
Throttle body
8.
By-pass air control
(BAC) valve
9.
Variable inertia charging system
(VICS) solenoid valve
10.
Pressure regulator control
(PRC) solenoid valve and PRC solenoid valve No. 2
11.
EGR solenoid valve (vacuum)
12.
EGR solenoid valve (vent)
13.
Intake manifold
