Component Locations

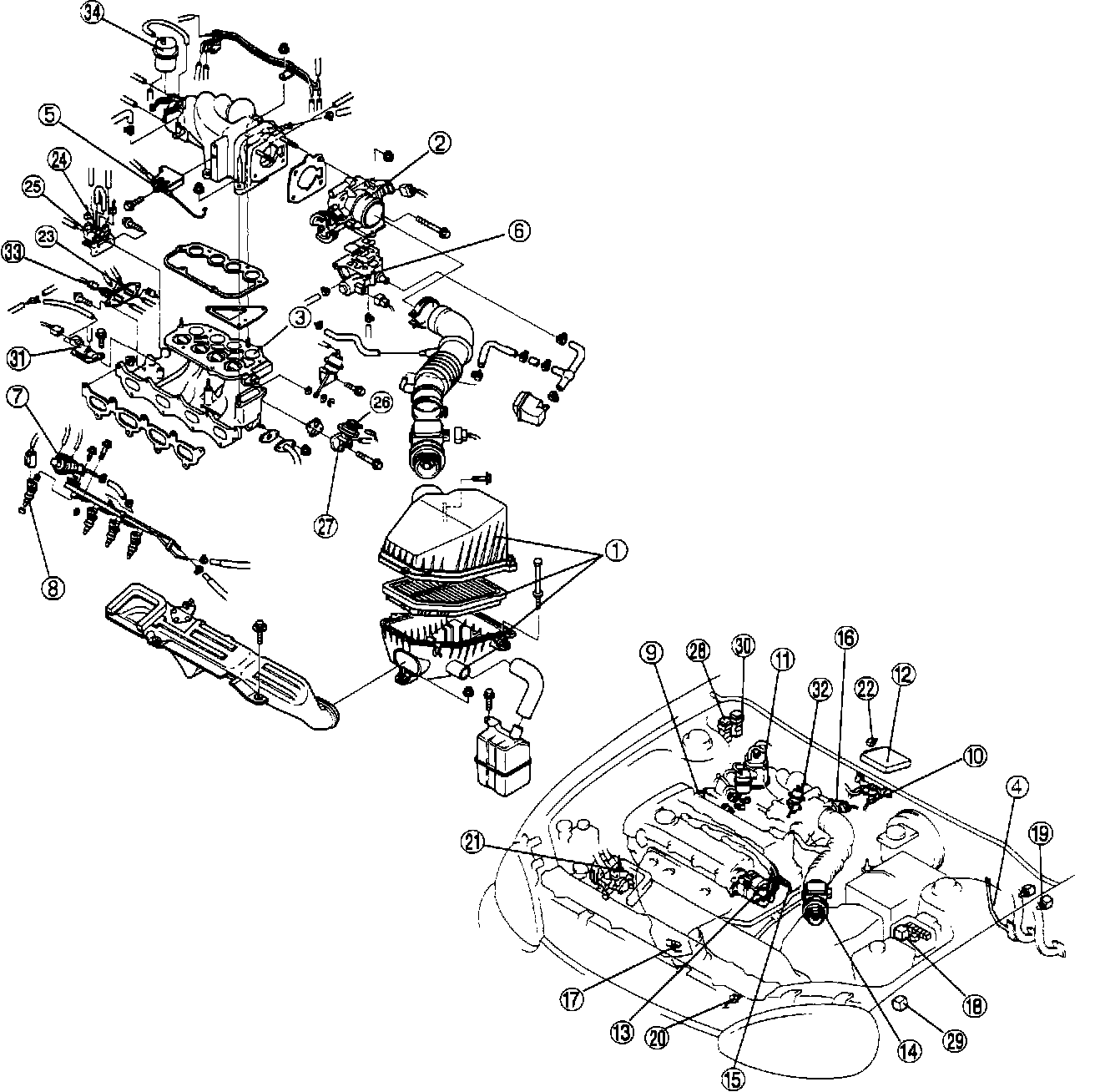

Component Locations:

1. Air cleaner assembly
2. Throttle body
3. Intake manifold
4. Accelerator pedal
5. Accelerator cable
6. Idle air control valve
7. Pressure regulator
8. Fuel injector
9. PCV valve
10. Purge solenoid valve
11. Charcoal canister
12. Powertrain control module engine
13. Crankshaft position sensor (in distributor)
14. Mass air flow sensor
15. Engine coolant temperature sensor
16. Throttle position sensor
17. Heated oxygen sensor
18. Main relay
19. Clutch switch manual transaxle (MTX)
20. Neutral switch (MTX)
21. Steering pressure sensor
22. Fuel pump relay
23. PRC solenoid valve
24. EGR solenoid valve (vacuum)
25. EGR solenoid valve (vent)
26. EGR function sensor
27. EGR control valve
28. A/C relay
29. Coolant fan relay
30. Condenser fan relay
31. Pressure regulator control (PRC) solenoid valve No. 2
32. Variable inertia charging system (VICS) shutter valve actuator
33. VICS solenoid valve
34. Vacuum chamber
