Crankshaft Position Sensor 2

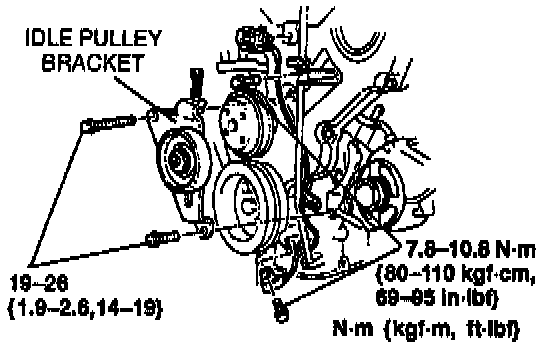

View: Crankshaft Position Sensor 2, Removal/ Installation:
1.
Disconnect negative battery cable.
2.
Remove idler pulley bracket.
3.
Remove dipstick tube.
4.
Remove sensor.
5
Install in reverse order. Adjust drive belt deflection.
