Pressure Regulator Control System

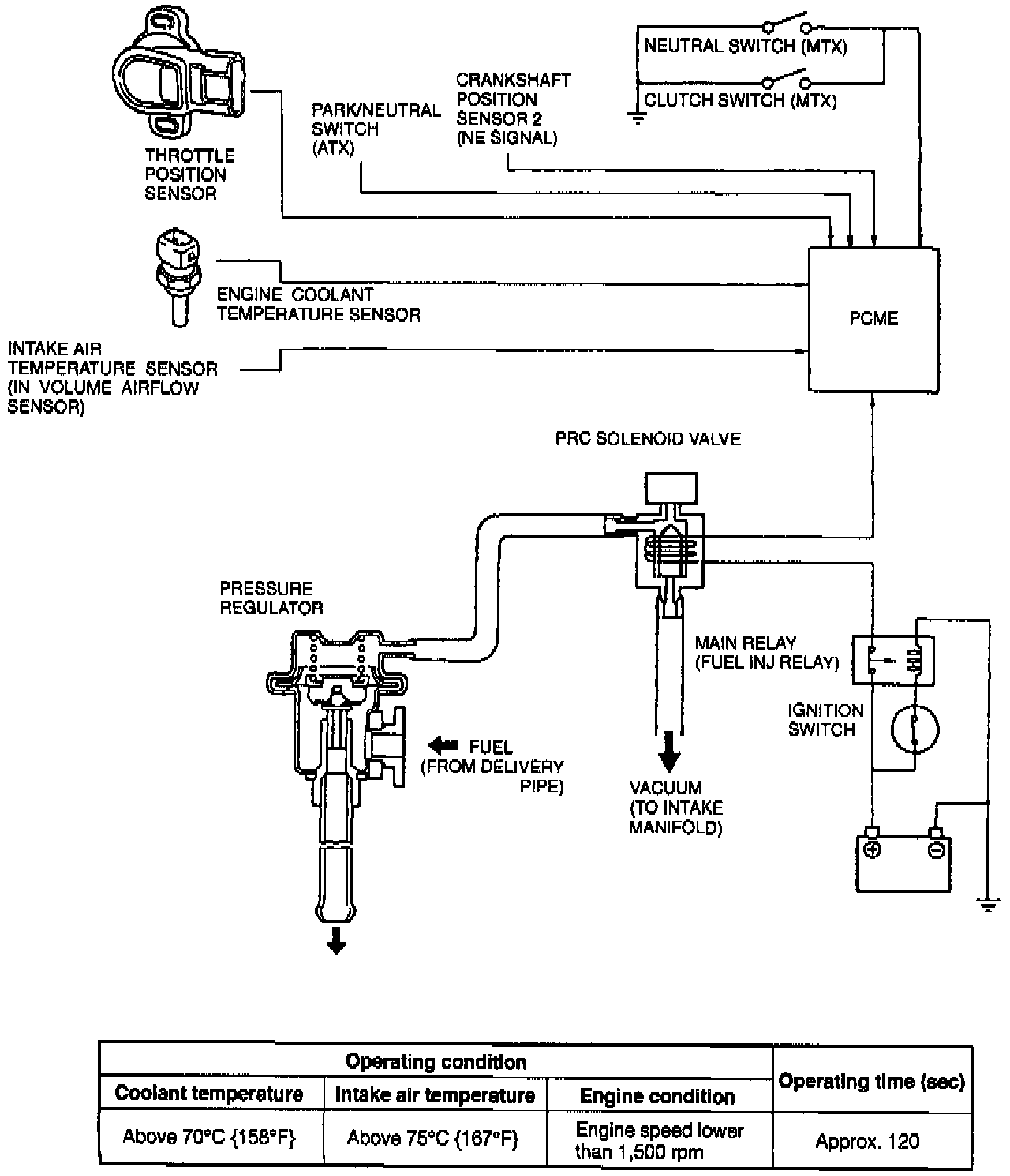

View: Pressure Regulator Control System:
PURPOSE To prevent percolation of the fuel during hot restart.
OPERATION Idle, vacuum to the
pressure regulator is momentarily cut and the fuel injection pressure is increased to slightly more than
284 kPa (41.2 psi). Pressure in the fuel line at idle is approx.
226 kPa (32.7 psi).
