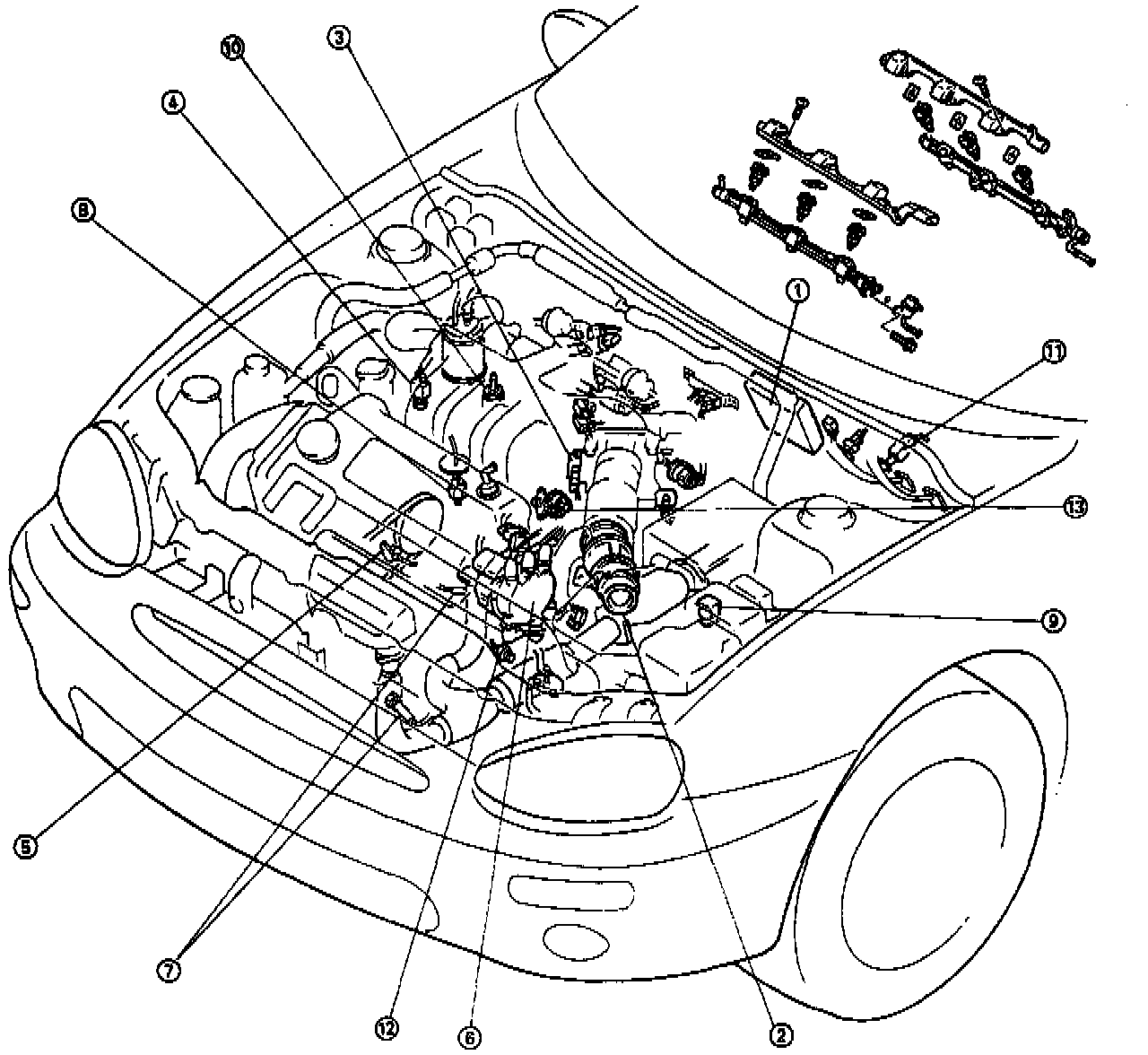

Component Locations
View: Control System Components:
1.
Powertrain control module (engine) (PCME)
2.
Volume airflow sensor
3.
Throttle position sensor
4.
Engine coolant temperature sensor
5.
Crankshaft position sensor 2
6.
Crankshaft position sensor 1
7.
Heated oxygen sensor
8.
Knock sensor
9.
Main relay
10.
Steering pressure sensor
11.
Clutch switch
12.
Neutral switch
13.
EGR function sensor
