A/C Cut-Off Control Inspection
SYSTEM OPERATION 1.
Turn the
ignition switch to ON.
2.
Turn the blower switch and air conditioning sensor (A/C switch) ON.
View: A/C Cut-Off System Operating Conditions:
3.
Verify that the condenser fan and the A/C magnetic clutch operate according to the chart shown above.

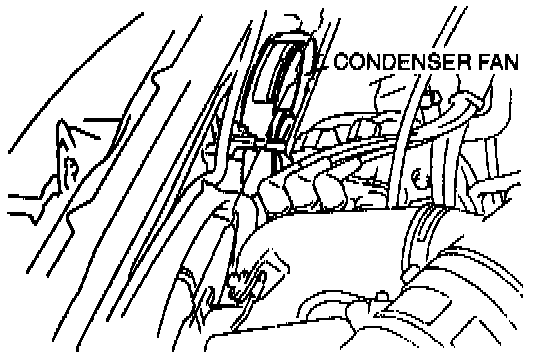

View: Condenser Fan:
NOTE: The magnetic clutch and the condenser fan operate together.
