Neutral Switch (MTX)

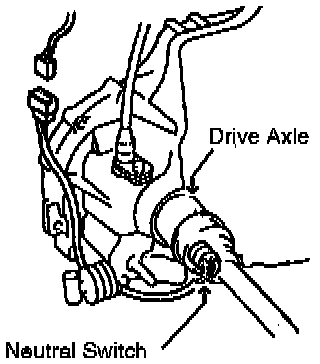

View: Neutral Switch:
REMOVAL 1.
Disconnect the
neutral switch connector.
2.
Remove the bracket.
3.
Remove the
neutral switch.
INSTALLATION 1.
Install new switch and tighten to
20 - 29 Nm (15 - 21 ft.lb.) 2.
Install previously removed bracket.
3.
Reconnect
neutral switch connector.
NOTE: Check and top off transaxle fluid level as necessary, following
neutral switch replacement.
