Neutral Switch (MTX)

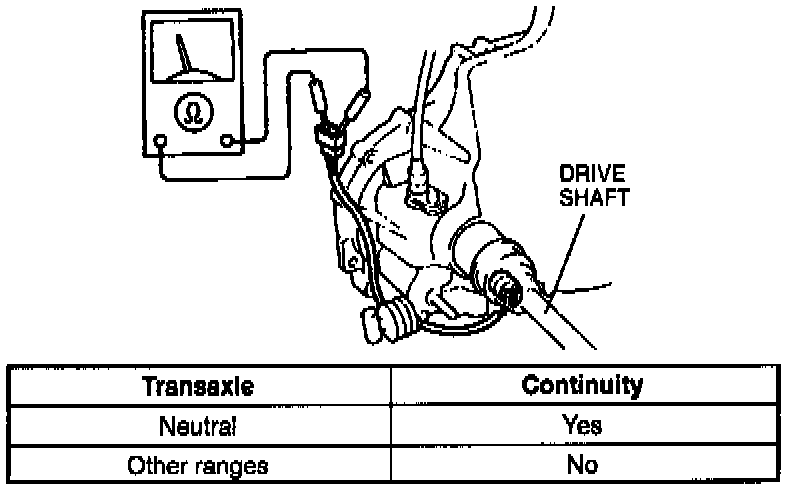

Neutral Switch: Test Connections and Specifications:
1.
Disconnect the
neutral switch connector.
2.
Check switch continuity with an ohmmeter.
-
With transaxle in neutral, continuity should exist between switch terminals.
-
With transaxle in gear, there should be NO continuity between switch terminals.
3.
If not as specified, replace switch.
