Receiver Dryer: Service and Repair

1. Discharge the refrigerant from the system.
2. Remove cooler pipe No.3.

CAUTION: If moisture or foreign material enters the refrigeration cycle, cooling ability will be lowered and abnormal noise will occur. Always immediately plug all open fittings after removing any refrigeration cycle parts to keep moisture or foreign material out of the cycle.

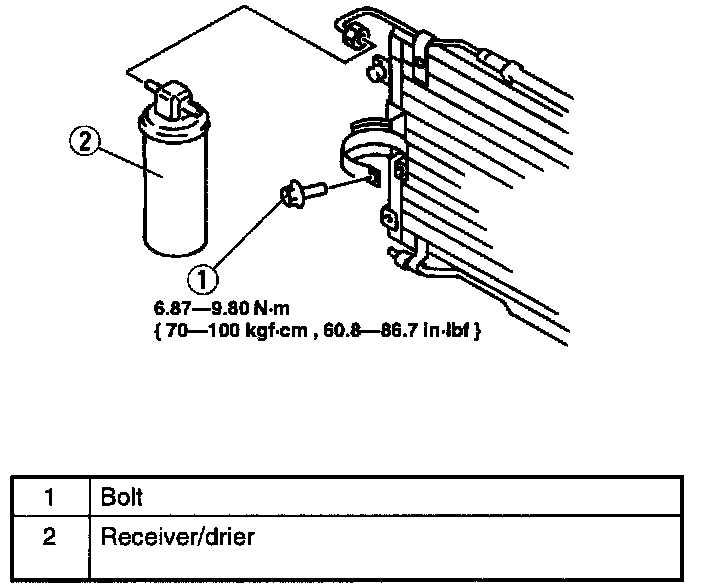

3. Remove in the order indicated in the table.
4. Install in the reverse order of removal.
5. Charge the system and test its performance.

Installation Note

- When installing a new receiver/drier, add ND-OIL9 compressor oil into the refrigeration cycle.
Supplemental amount
10 ml {10 cc, 0.3 fl oz}
