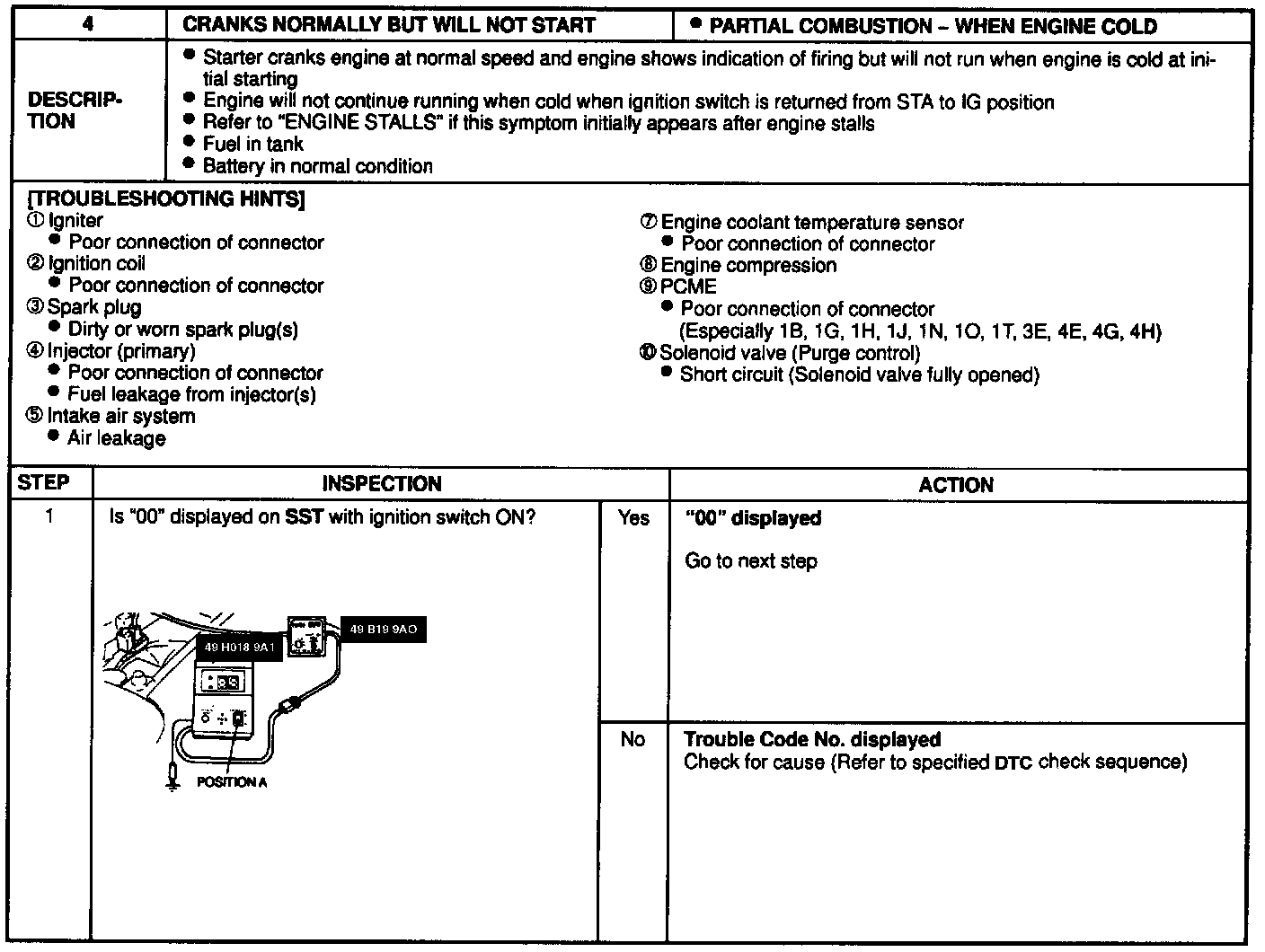

Reading Diagnostic Troubleshooting Charts




DESCRIPTION:
Further describes the system. Confirm that the chart addresses the actual symptom before beginning troubleshooting.

TROUBLESHOOTING HINTS:
This describes the possible point of malfunction.

STEP:
This shows the order of troubleshooting. Proceed with troubleshooting as indicated.

INSPECTION:
This describes an inspection to quickly determine the malfunction of parts. If a detailed procedure is necessary to perform the INSPECTION, refer to the related system or component.

ACTION:
This recommends the appropriate action to take as a result (Yes/No) of the INSPECTION.
