Disassembly

NOTE: The extension housing oil seal does not need to be removed unless you are replacing it.

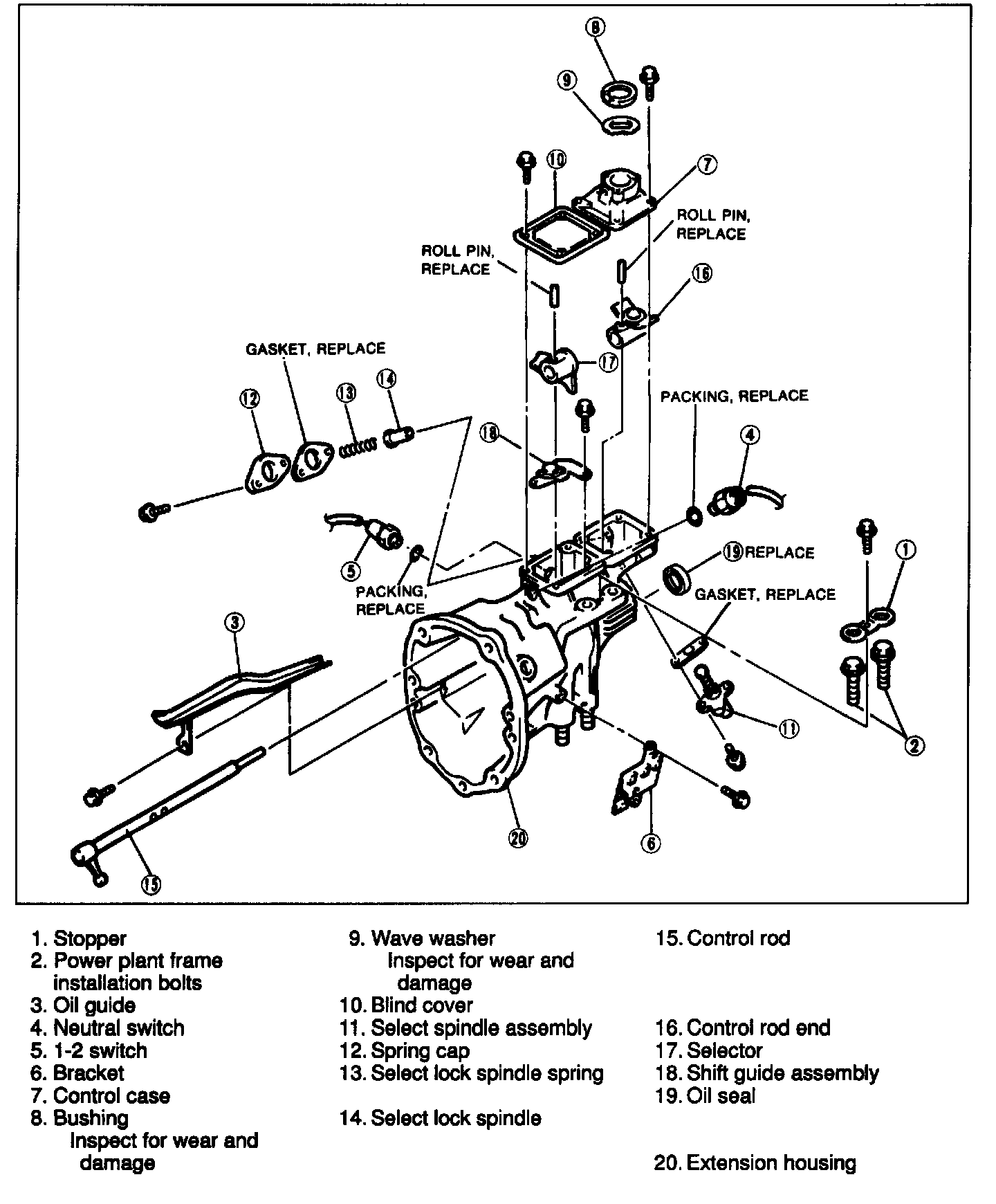

Disassemble in the order shown, referring to Disassembly Note.

Disassembly note
Control rod




1. Slide the control rod end to the point where the roll pin is directly above the recess in the extension housing.
2. Remove the roll pin from the control rod end by using & pin punch and hammer.




3. Remove the roll pin from the selector by using a pin punch and hammer.
4. Slide the control rod from the extension housing, and remove the control rod end and selector.




Oil seal (extension housing)
Remove the oil seal from the extension housing by using a screwdriver.
