Coolant Fan Control System




DESCRIPTION

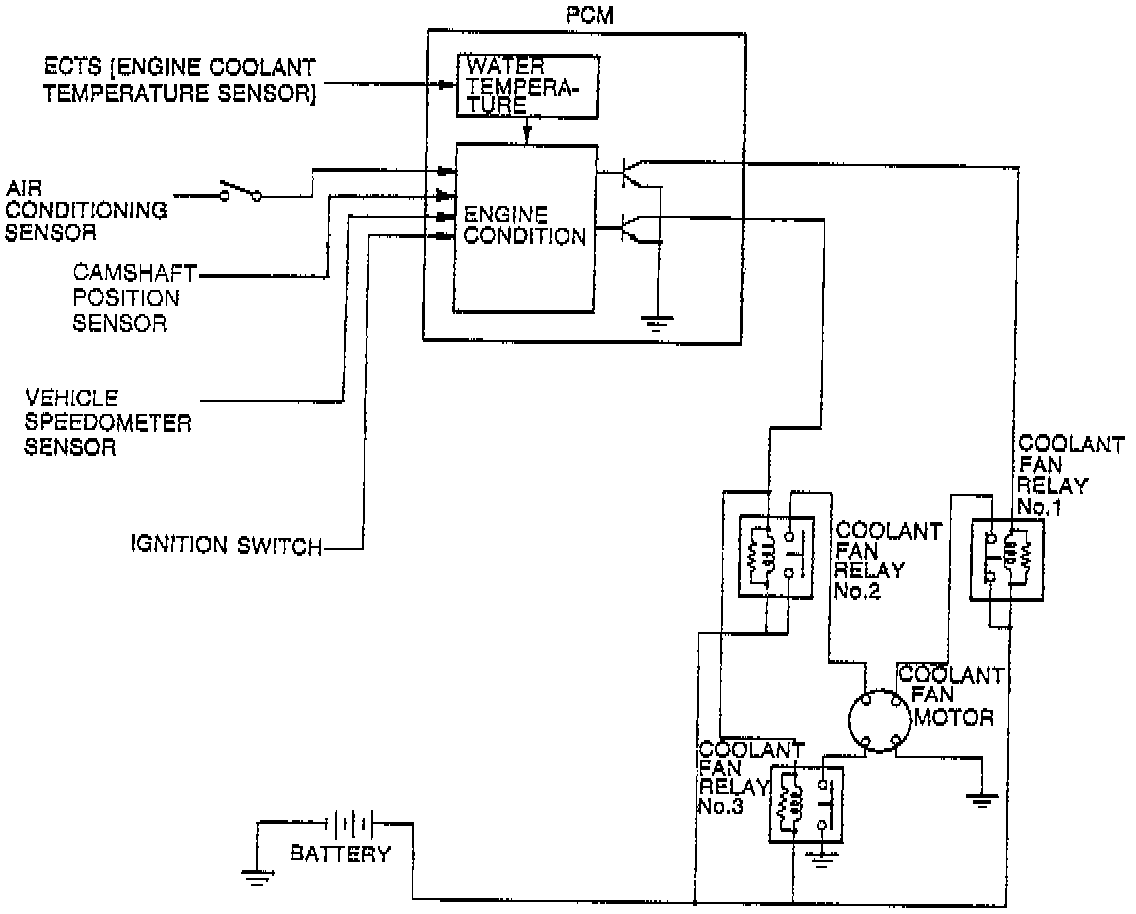

To improve reliability, the coolant fan is controlled by the PCM. This system consists of the coolant fan motor, fan relays, PCM and input devices.

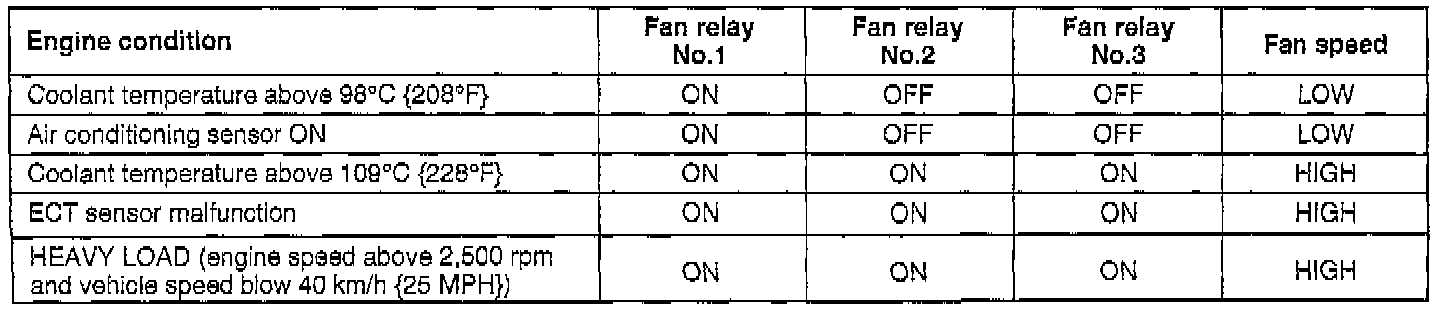

COOLANT FAN OPERATION CHART
