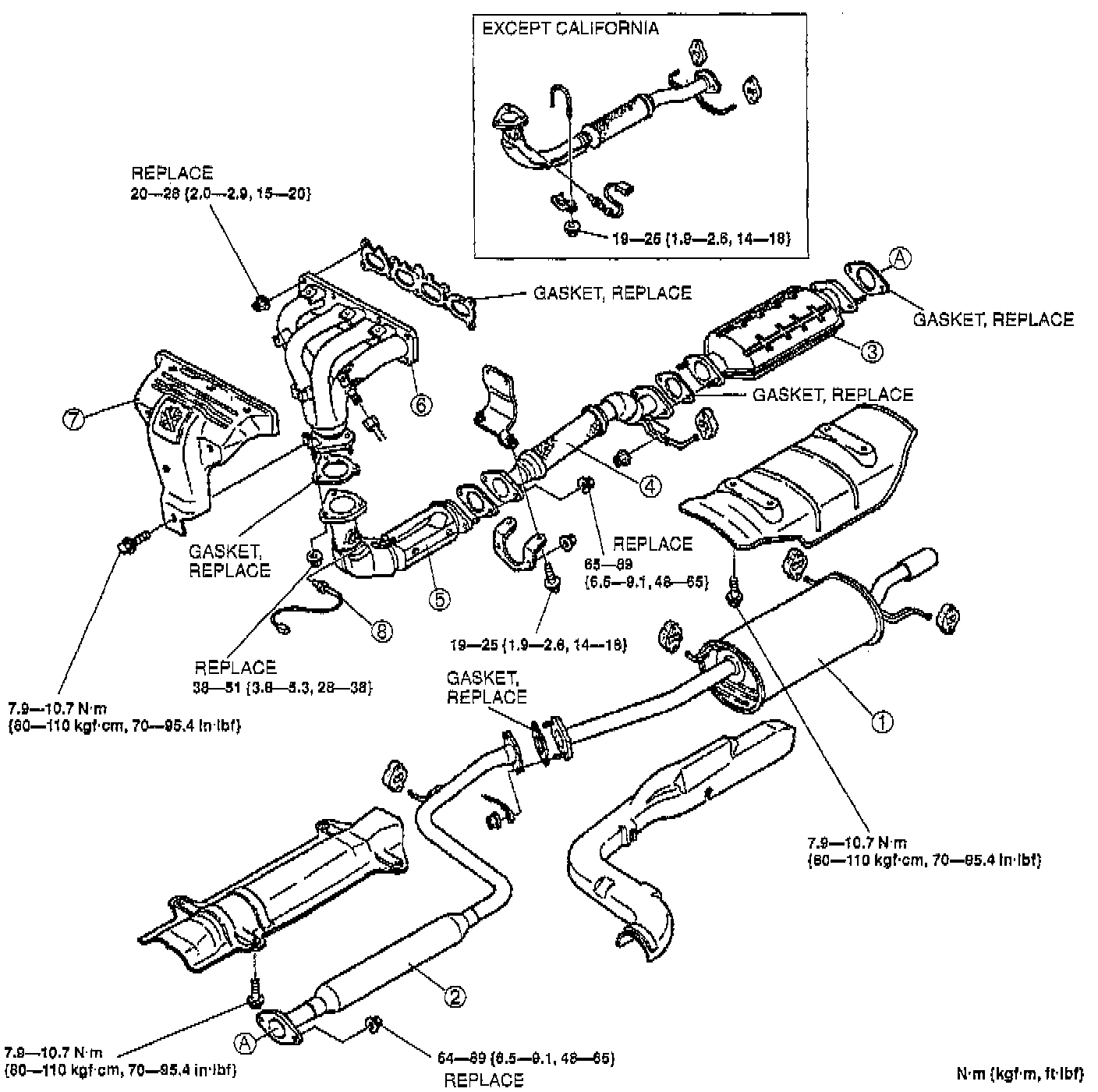

Exhaust System
1. Main silencer
2. Pre-silencer
3.
Three way catalytic converter Inspect for deterioration and restriction
4. Front pipe assembly
5. Warm up three way catalytic converter (California)
6. Exhaust manifold insulator
7. Exhaust manifold
8. Heated oxygen sensor
