With Manual Transaxle (MTX)
INSPECTION 1.
Verify that the main relay clicks when the ignition switch is turned ON and OFF.
2.

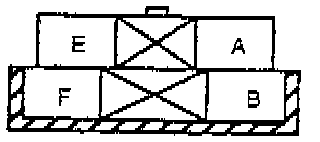

Apply battery positive voltage (B+) to terminal E and ground terminal A of the
relay.
3.
Check continuity of the
relay as shown.
NOTE: B+ is Battery positive voltage. 4.
If not as specified, replace the main relay.
