A/C Cut-Off Control System

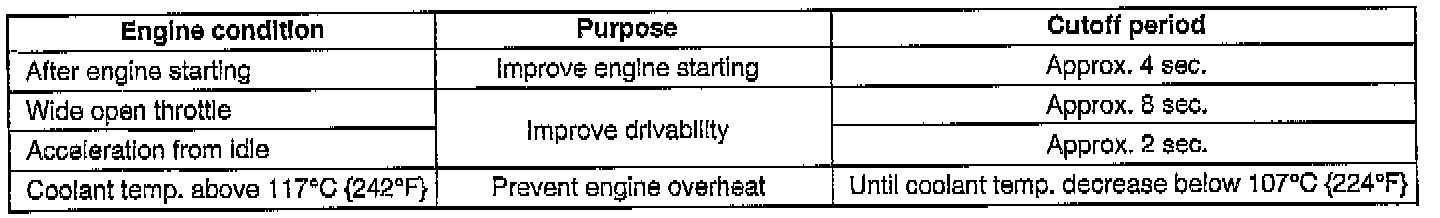

OPERATION The A/C clutch operation is cancelled under the conditions shown in the chart.
SYSTEM TEST 1.
Turn the
ignition switch ON.
2.
Turn the blower switch and A/C switch ON.
3.
Start the engine.
4.
Verify that the condenser fan stops for approx. 4 sec. after the engine starts.
