Clutch Switch: Service and Repair

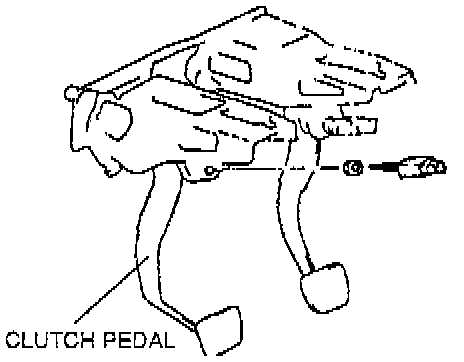

REPLACEMENT 1.
Loosen the nuts and remove the
clutch switch.
2.
Install the
clutch switch.
3.
Adjust the clutch pedal height referring to the above and the height specifications.
4.
Tighten the nuts to the specified torque.
Tightening torque: 14-17 N-m (11-13 ft-lb)
