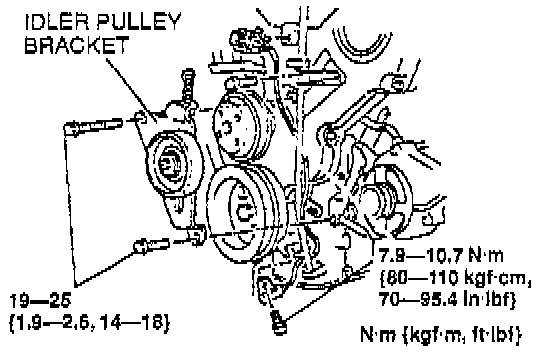

Crankshaft Position Sensor: Service and Repair
REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the idler pulley bracket.
3.
Remove the dipstick pipe.
4.
Remove
crankshaft position sensor.
5.
Install in the reverse order of removal.
6.
Adjust the drive belt deflection.
