Crankshaft Position Sensor: Testing and Inspection
INSPECTION 1.

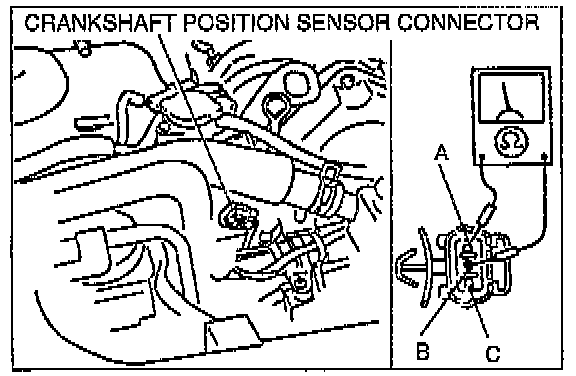

Disconnect the
crankshaft position sensor connector.
2.
Measure the resistance between terminals A and B.
Resistance: 520-580 Ohms (20°C (68°F) 3.
Replace
crankshaft position sensor if not as specified.
