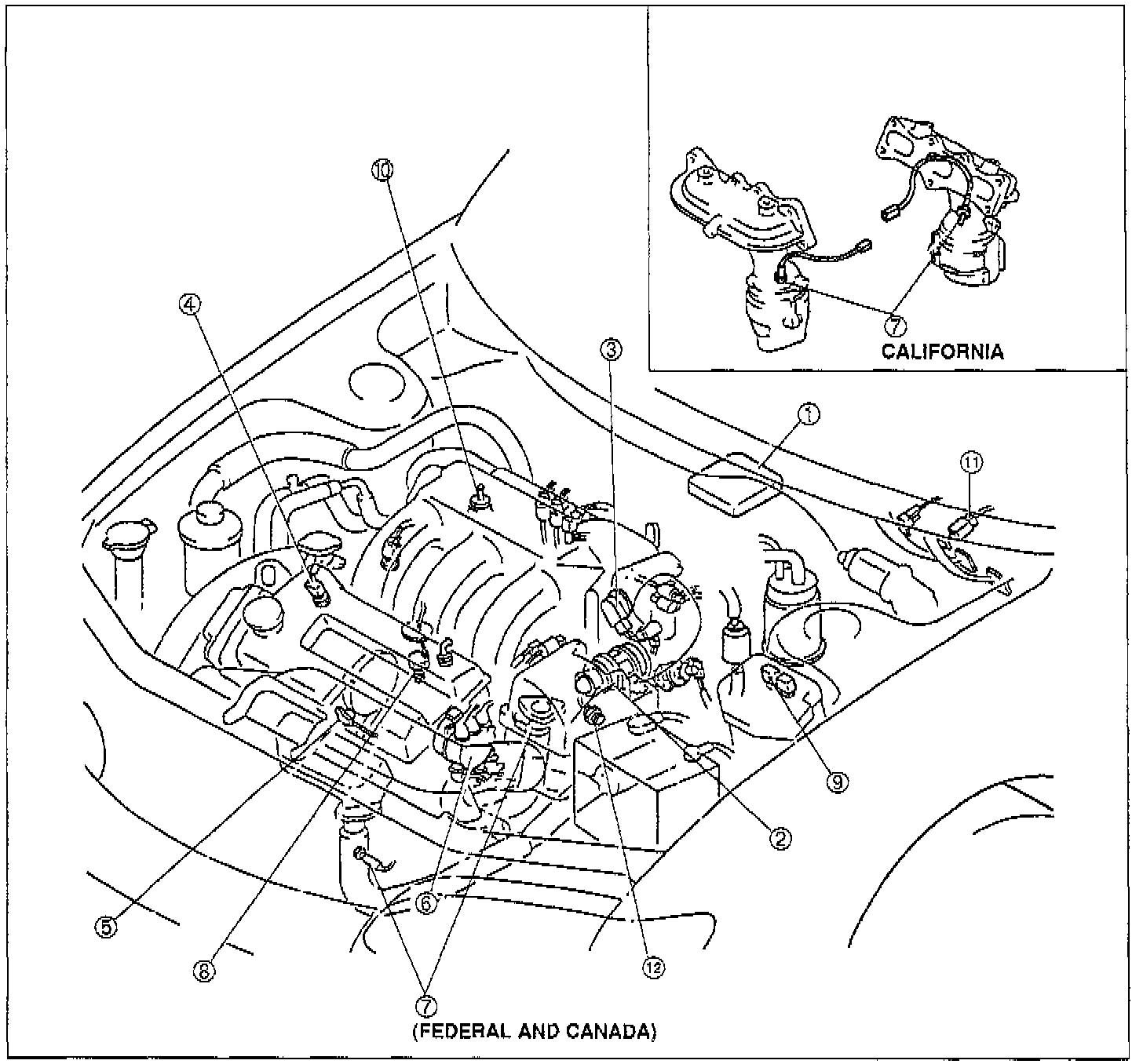

Engine Control Component Index
1.
Engine control module (ECM)
2.
Volume air flow sensor
3.
Throttle position sensor 4.
Engine coolant temperature sensor
5.
Crankshaft position sensor 6.
Camshaft position sensor 7.
Heated oxygen sensor
8.
Knock sensor 9.
Main relay
10.
P/S pressure switch
11.
Clutch switch
12.
[1][2]Neutral switch
