Dechoke Control System
SYSTEM TEST 1.

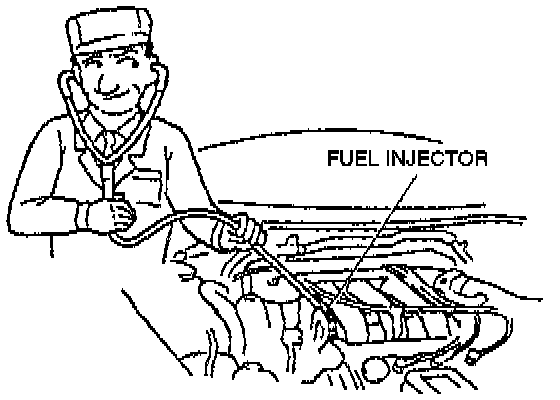

Turn the
ignition switch to START and verify that
fuel injector operating sound is heard while the engine is cranking.
2.
Depress the
accelerator pedal fully and turn the
ignition switch to START. Verify that no
fuel injector operating sound is heard while cranking.
3.
If operating sound is heard, check the ECM terminal 10 voltage.
