Vehicle Speed Sensor: Testing and Inspection

INSPECTION
Vehicle Speed Sensor
1. Remove the instrument cluster.

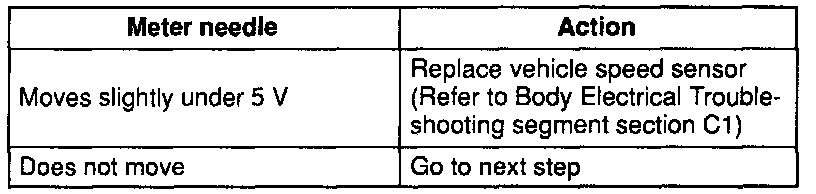

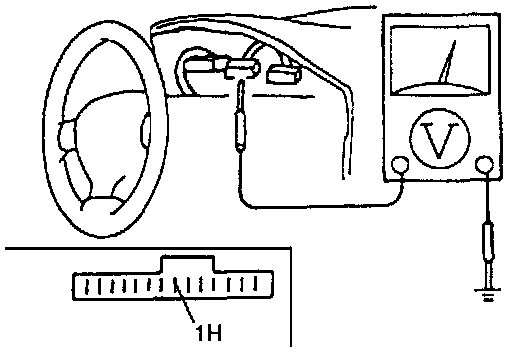

2. Measure voltage between terminal 1H and a ground when rotating the front wheels.

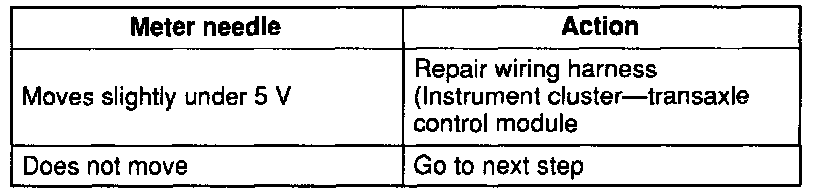

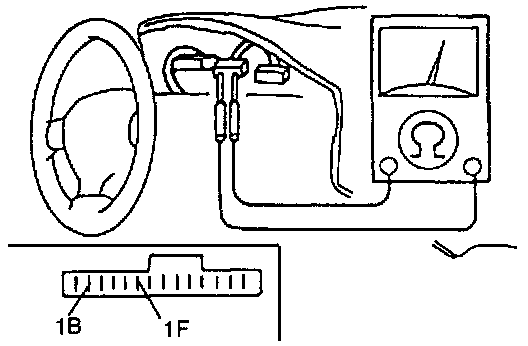

3. Measure voltage between terminals 1B and 1F of the vehicle harness when rotating the front wheels.

Vehicle Speedometer Sensor

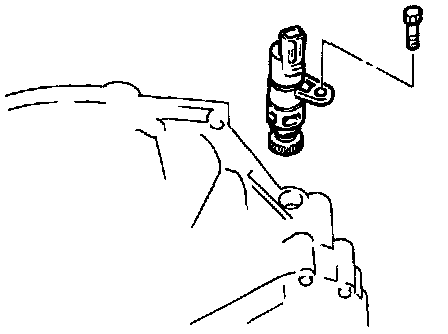

1. Remove the vehicle speedometer sensor.

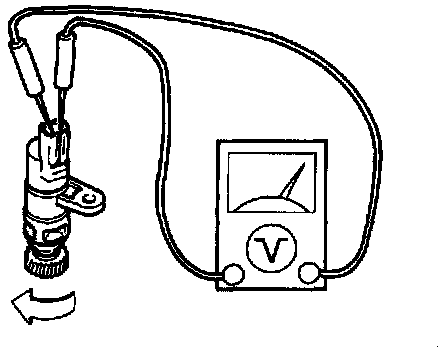

2. Measure voltage between terminals of the vehicle speedometer sensor while rotating the driven gear.
3. Install the vehicle speedometer sensor.
