Removal/ Installation
1.
Disconnect negative battery cable.
2.
Remove the fresh-air duct.
3.
Remove the air cleaner.
4.

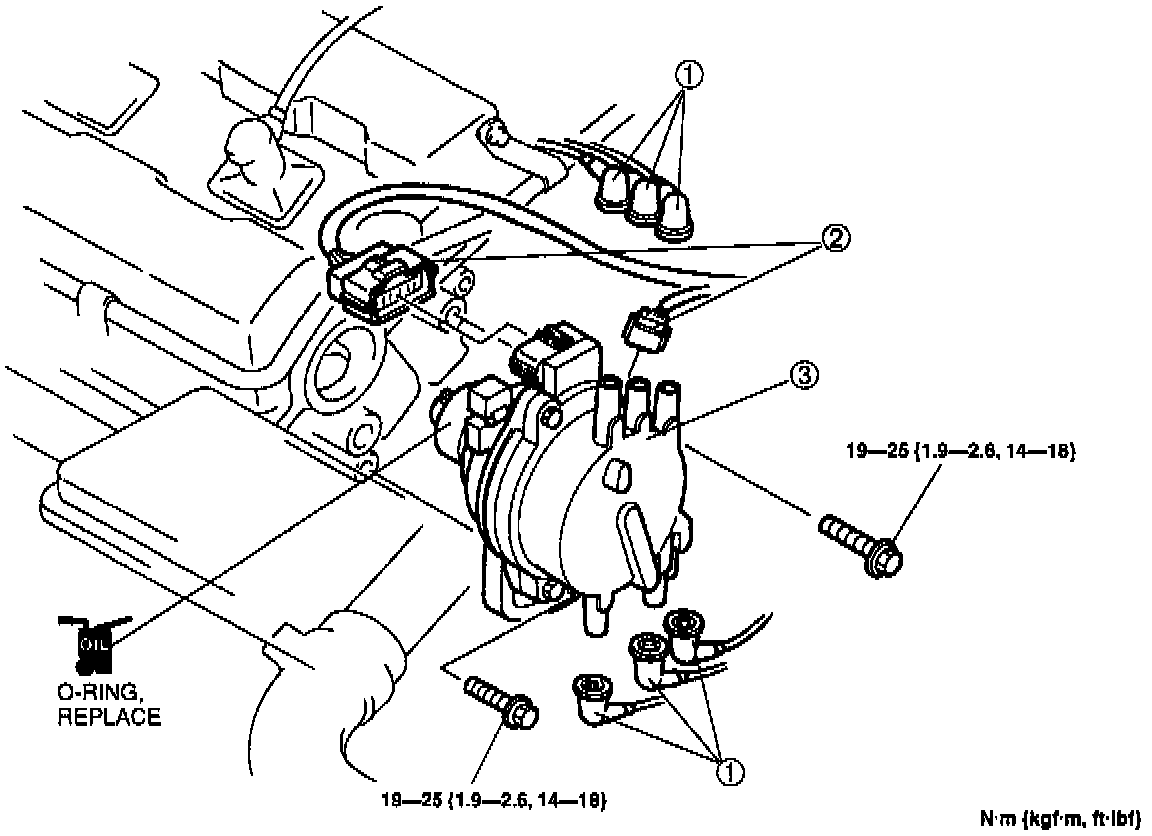

Remove in the order shown in the figure.
5.
Install in the reverse order.
Torque specification:
19-25 N.m (1.9-2.6 kg-m, 14-18 ft-lb)
