California

INSPECTION (On-vehicle)
Start the engine and verify that there is no exhaust gas leakage from the exhaust system components.

REMOVAL/INSPECTION/INSTALLATION

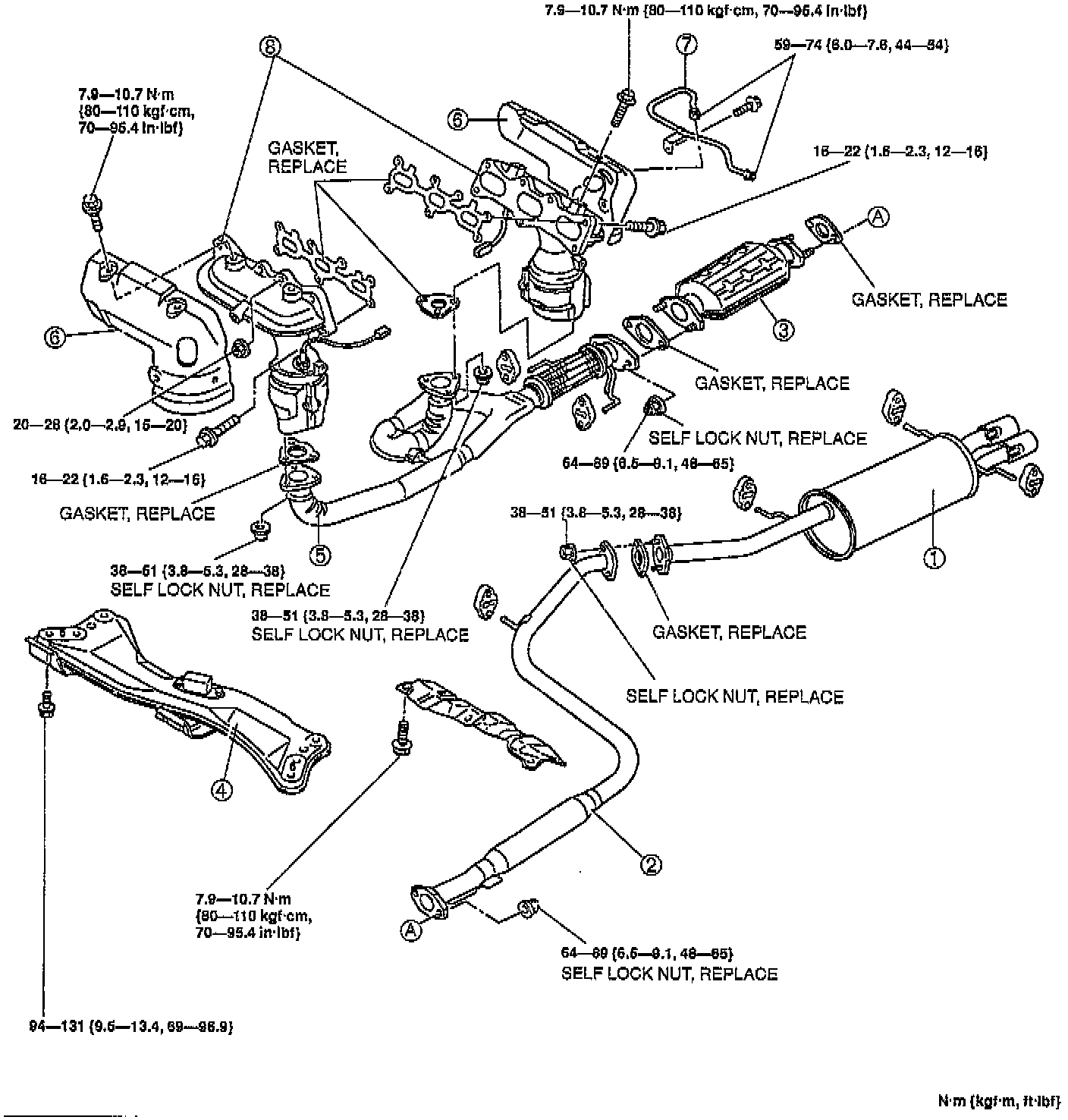

1. Remove in the order shown in the figure.
2. Check all parts and repair or replace as necessary.
3. Install in the reverse order of removal.






California
1. Main silencer
Inspect for deterioration and restriction
2. Pre silencer
Inspect for deterioration and restriction
3. Three way catalytic converter inspect for deterioration and restriction
4. Transverse member
5. Front pipe
Inspect for deterioration and cracks
6. Insulator
7. EGR pipe
Inspect for deterioration and cracks
8. Warm up three way catalytic converter
Inspect for deterioration and cracks
