Air Flow Meter/Sensor: Testing and Inspection
Volume Airflow Sensor Resistance Specifications:

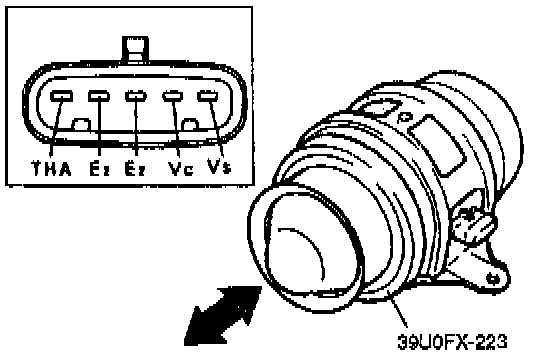

VOLUME AIRFLOW SENSORInspection 1.
Check the volume airflow sensor body for cracks and damage.
2.
Verify that the measuring plate opens smoothly.
3.
Measure the resistance of the volume airflow sensor using a circuit tester.
4.
Inspect the grommet for damage. If necessary, replace the grommet.
