EGR Valve: Service and Repair
Replacement 1.

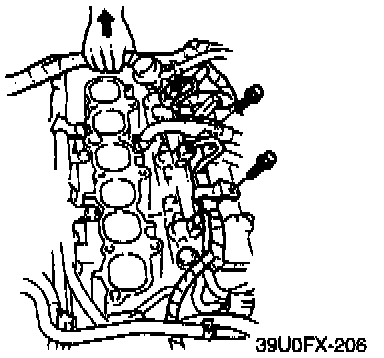

Move and secure the harness away from the
EGR valve.
2.
Plug water hoses after disconnecting them.
3.

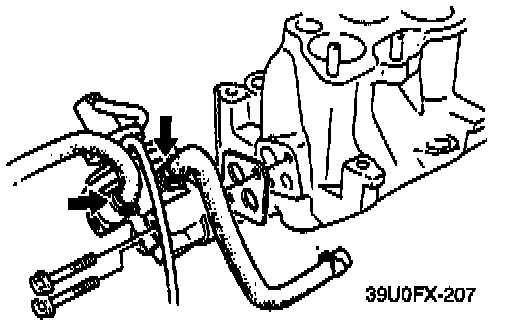

Remove the
EGR valve in the following sequence.
a.
Dynamic Chamber.
b.
EGR Hoses.
c.
Vacuum Hose.
d.
EGR Function Sensor Connector.
e.
EGR Valve and Gasket.
4.
Use new gaskets and replace the
EGR valve.
