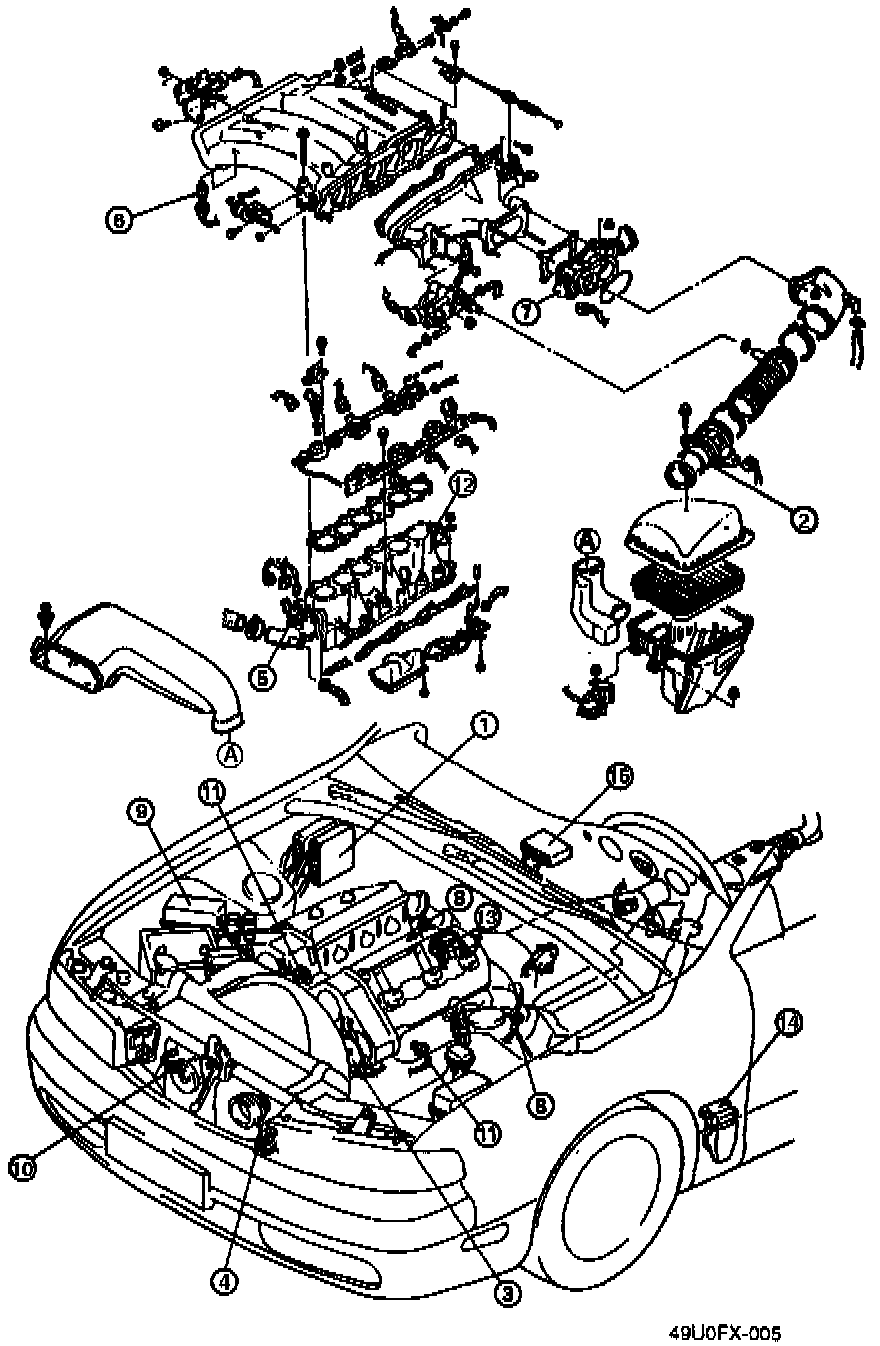

Powertrain Management: Locations

1. Engine Control Module (ECM)
2. Volume Air Flow Sensor
3. Camshaft Position Sensor
4. Crankshaft Position Sensor
5. Engine Coolant Temperature Sensor
6. Intake Air Temperature Sensor
7. Throttle Position Sensor
8. Heated Oxygen Sensor
9. Main Relay
10. Power Steering Pressure Switch
11. Knock Sensor
12. Exhaust Gas Recirculation (EGR) Valve
13. EGR Solenoid Valve
14. Central Processing Unit (CPU)
15. Air Conditioning (A/C) Amplifier
