Replacement

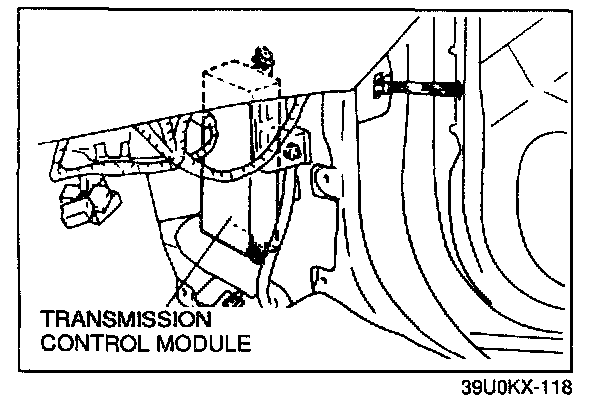

TRANSMISSION CONTROL MODULE
Replacement
1. Disconnect the negative battery cable.
2. Remove the front side trim (passenger side).




3. Remove the engine control module.
4. Remove the transmission control module and disconnect the connectors.
5. Connect the transmission control module connectors to the new transmission control module.
6. Install the new transmission control module.

Tightening torque: 7.9 - 10.7 N.m {80 - 110 kgf.cm, 70 - 95 in.lbf}

7. Install the engine control module.
8. Install the front side trim (passenger side).
9. Connect the negative battery cable.
