Tools - 104 Pin Breakout Box

Bulletin No.: 004/94
Issued: 12/16/94
Revised:

Category
ST

Applicable Models
1995 B Series

Subject:
SPECIAL SERVICE TOOL (104 PIN BREAKOUT BOX) SHIPMENT

DESCRIPTION

The 1995 B-Series Truck uses a new EEC-V engine control system and a 104 pin Powertrain Control Module (PCM) instead of the previous 60 pin (PCM). A new breakout box (P/N 49UN-01-1300) has been developed for diagnosing problems in this new system.

The breakout box is a Minimum Required Tool (MRT). This tool will be automatically shipped to all dealers on December 21, 1994 by Mazda's tool vendor, America Kowa Seiki, Inc. The cost of the tool is $481.07. This amount will be charged to your parts account upon receipt of the tool.Advise your shipping/receiving personnel of this shipment.

APPLICATION

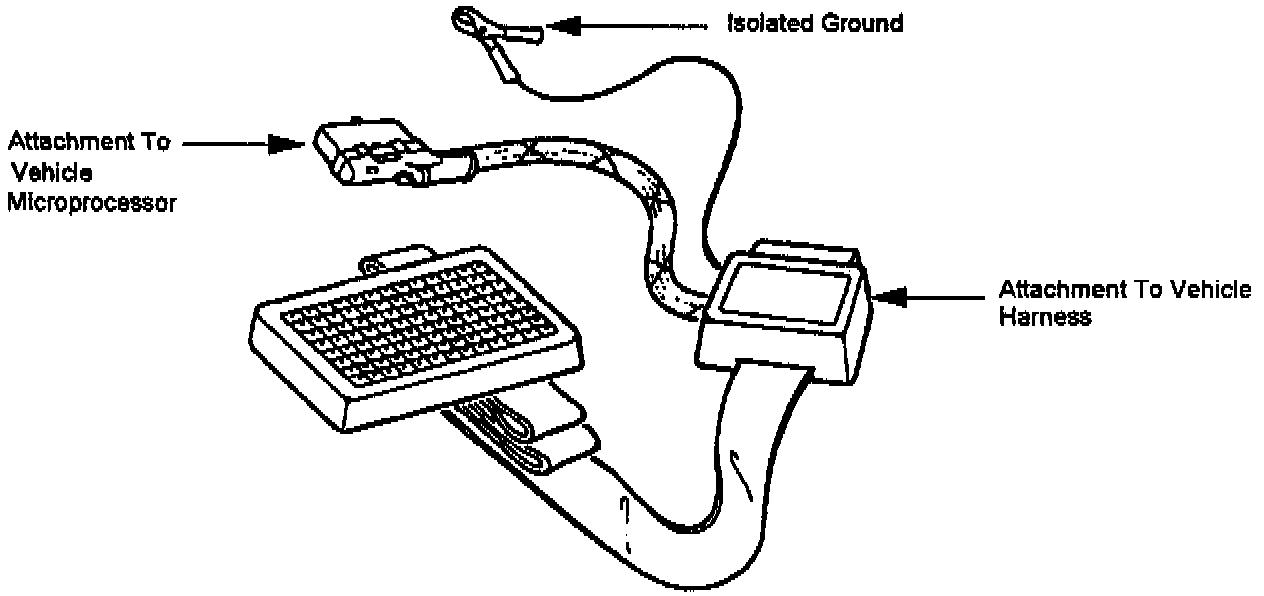

The breakout box, illustrated, is used in the pinpoint test routines of the EEC-V self-test procedures.

If you have any questions regarding this information contact your District Customer Support Manager or Tools/Development Manager at (714) 588-5059.
