Fluid - Differential: Testing and Inspection
ON-VEHICLE MAINTENANCE Rear Differential Oil Inspection 1.

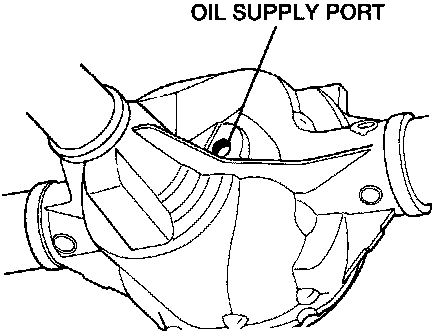

Remove the oil supply port plug.
2.

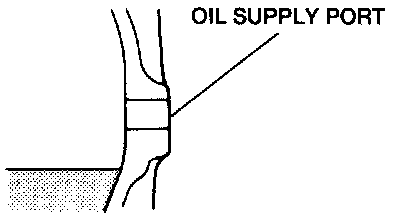

The oil level should be the specified distance below the oil supply port.
Specification:
6.35-14.28mm {O.25-O.56 in} 3.
If the level is below the necessary amount, add oil of the specified type.
4.
Tighten the oil supply port plug.
Tightening torque:
21-4O N.m {2.1-4.1 kgf.m, 15-30 ft.lbf}
