Engine Control Module: Specifications
Note: All values shown may vary ± 20% depending on operating conditions and other factors. RPM values are axle and tire dependent.
NOTE: Must print both images from each terminal set to view complete chart.

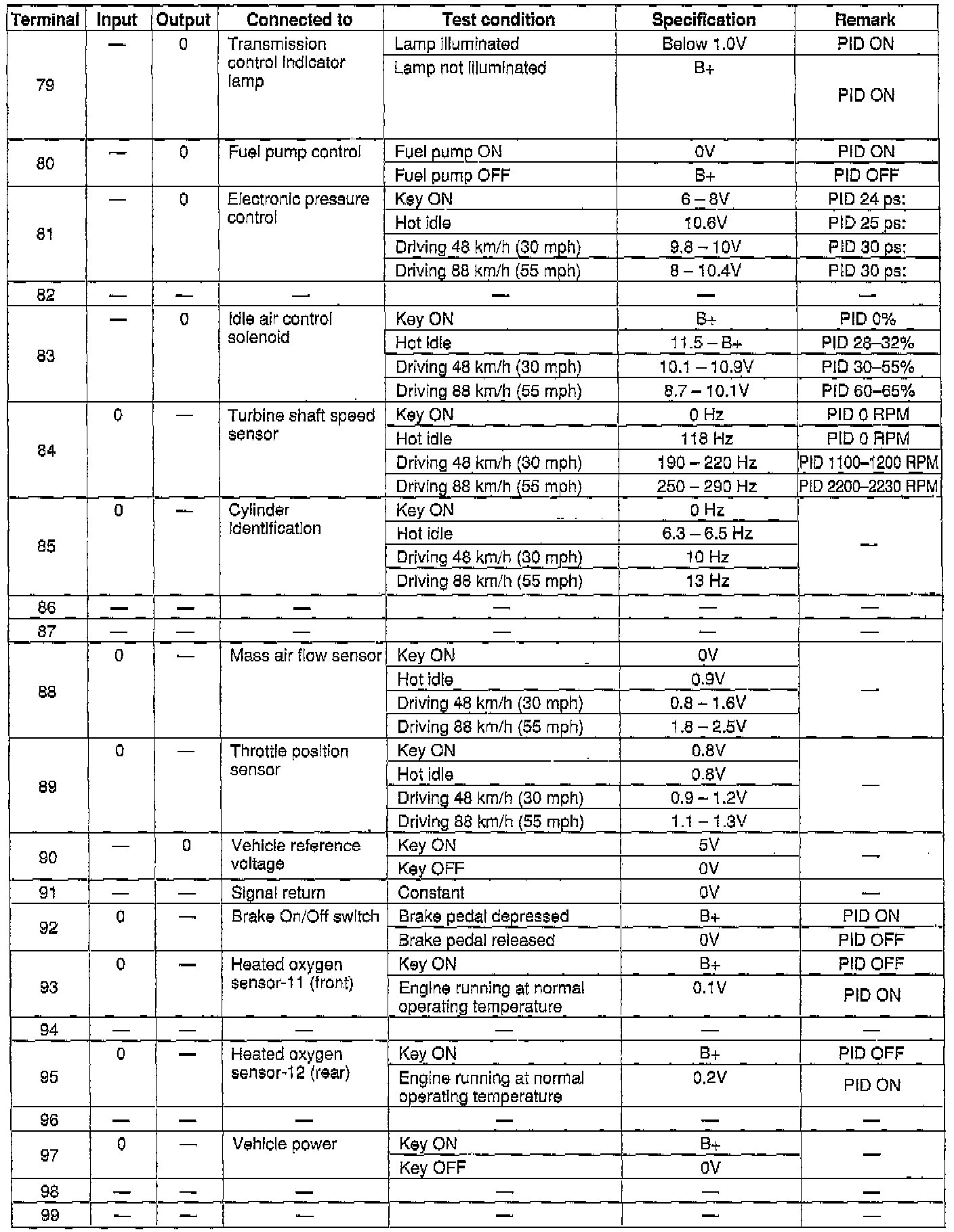

TERMINALS 1 THROUGH 30TERMINALS 31 THROUGH 55TERMINALS 56 THROUGH 78TERMINALS 79 THROUGH 99TERMINALS 100 THROUGH 104PID DATA MONITOR
