Air Temperature Sensor ( Ambient / Intake ): Testing and Inspection
Inspection 1.
Disconnect the intake air temperature sensor connector.
2.

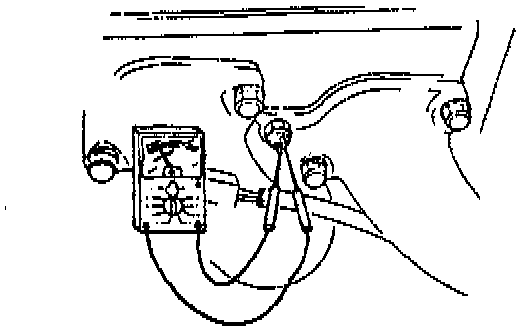

Connect an ohmmeter to the sensor terminals.
3.

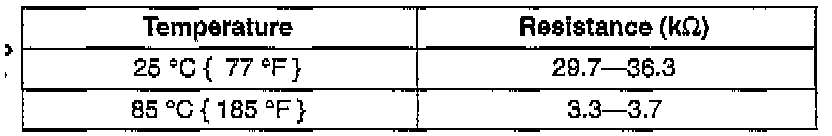

Check the resistance of the sensor.
4.
If not as specified, replace the intake air temperature sensor.
