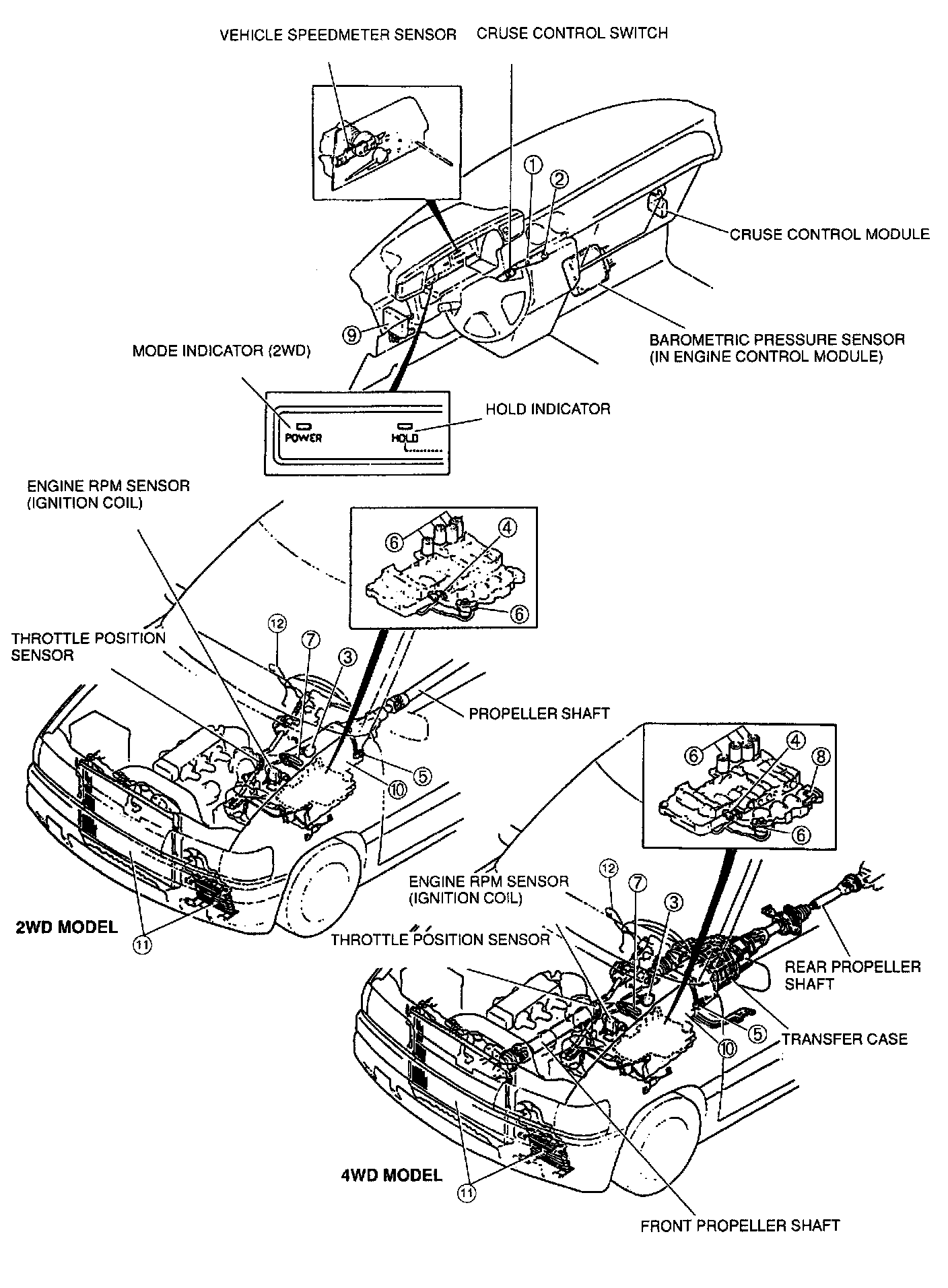

System
1.
Mode switch (2WD)
2.
Hold switch
3.
Transmission range switch
4.
Transmission fluid temperature sensor
5.
Output speed sensor
6.
Solenoids
7.
Dropping resistor
8.
Transmission fluid temperature switch (4WD)
9.
Transmission control module
10.
Automatic transmission
11.
Oil cooler(s)
12.
Selector lever and control linkage
