Oxygen Sensor: Service and Repair

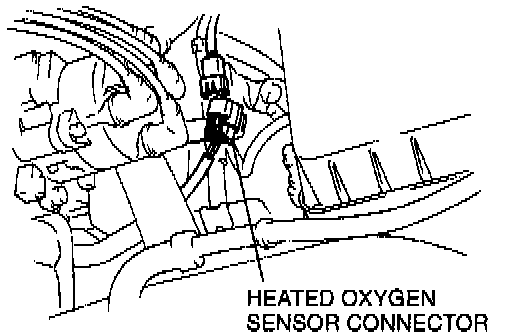

REMOVALView: Connector Location:
1.
Disconnect harness connector.
View: Heated Oxygen Sensor:
2.
Remove sensor with suitable socket or wrench.
INSTALLATION 1.
Apply thin coating of anti-seize compound to threads.
NOTE: Do not contaminate sensing tip with compound.
2.
Install sensor and torque to
30 - 49 Nm (22 - 36 ft.lb.)
